When it comes to suspension maintenance, people often overlook the humble bump stop. Effectively a second rubber spring that prevents your car’s shocks and/or struts from bottoming out, these things take a lot of abuse and wear over the years. Let’s just say that you’re going to want to change your bump stops out before they’re in a sorry state.
My Boxster is reasonably youthful in human years but positively old in car years. It’s a 1999 model, turning 27 years old in Spring. You know what was 27 years old in 1999? A 1972 914. Still, it’s been practically coddled. Alright, maybe coddled isn’t the right word considering it’s had some paintwork and seen some dents, but quite well-maintained and kept out of the winter salt. It’s lived a largely indoor existence having covered the equivalent of 71,500 miles, and all the rubber parts are surprisingly mint. The bushings look good, the top hats and spring insulators aren’t dry-rotted, the end links were done recently, that sort of stuff.
However, I did notice that body control has been getting a little bit imprecise over freeway expansion joints, so I figured I’d change out the dampers for fresh ones while it’s parked up for the winter. Instead of the factory Bilsteins, I’m going with direct-replacement Koni Special Active dampers because they’re reasonably priced, work with the stock springs, and have a pretty trick piece of tech going on in each of them.

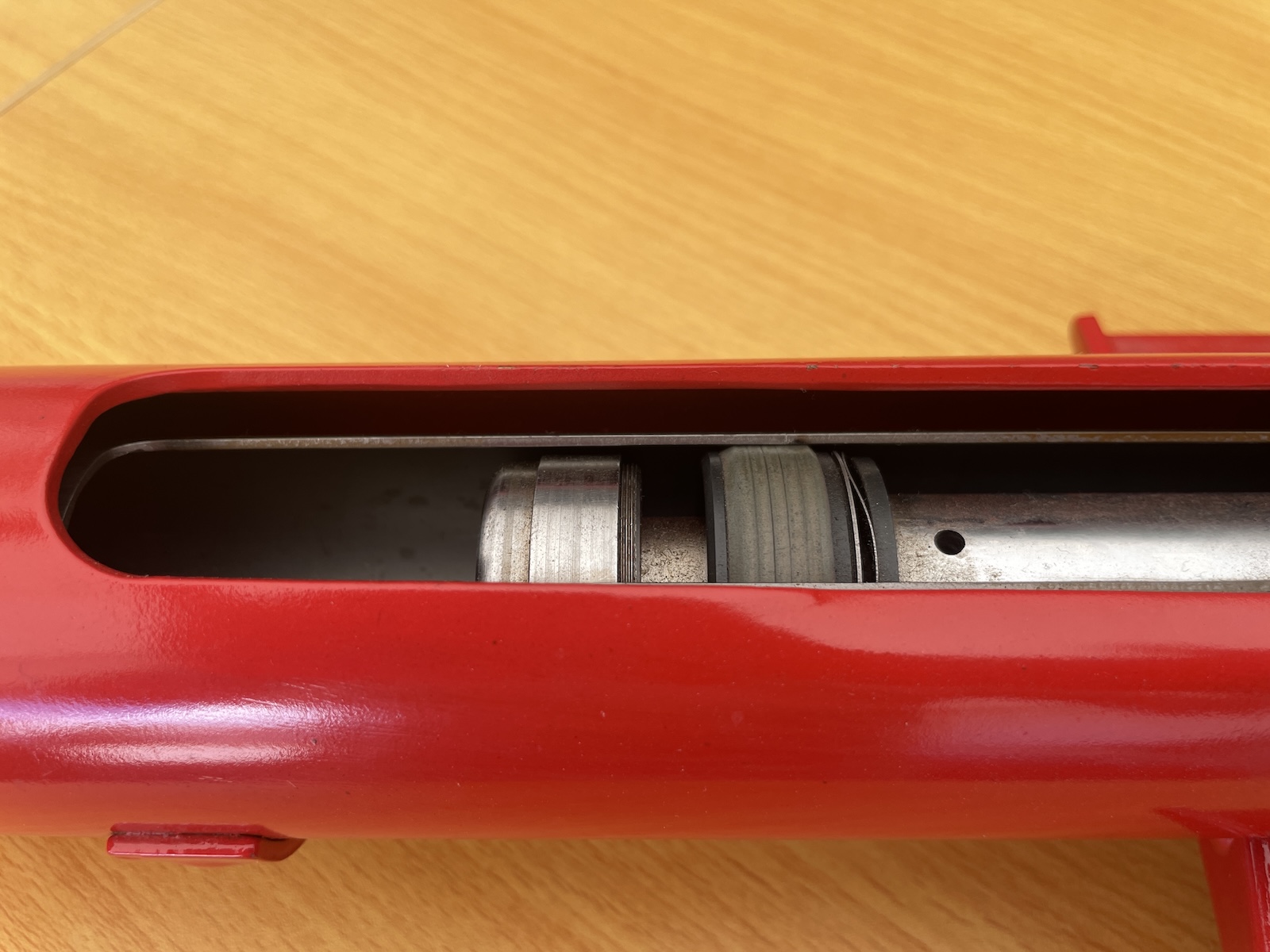

Most dampers, um, damp by controlling oil flow through a piston with a certain number and diameter of holes in it. That’s an oversimplification, but it means that the damping is essentially fixed to one set of compression values and one set of rebound values. The Koni Special Active dampers augment this with a special valve controlling a parallel flow of oil to the piston, increasing damping almost in time with piston movement. This means you get less damping when the damper shaft moves quickly (for example, over bumps on city streets) to keep the ride comfortable, and more damping when the damper shaft moves slowly – such as under hard braking and while cornering, to increase body control.
A wide variety of automakers use this tech, including Fiat on the 500 Abarth and Lamborghini on the Gallardo, partly because it’s sort of like fully mechanical adaptive damping. Considering Toronto’s road surfaces are generally awful, the fancy Konis sounded like just the ticket, even if I had to make a little modification. They all come in red, I drive a yellow car, and the last time I check, my driver’s licence doesn’t say Ronald McDonald. Bit of masking, bit of black spray paint, and good enough.
However, this story isn’t about dampers, it’s about bump stops, the little chunks of rubber or foam rubber that prevent the piston in a damper from simply slamming into the bottom of the damper body when you hit a really big bump. As I proceeded with the ever-sketchy use of spring compressors on the right front spring, removed the nut holding the strut mount on, and pulled off the boot, a certain horror awaited me. That aged, red bump stop looks a whole lot worse than it looked a couple of years ago, mostly because part of it is just gone.
No wonder the right front corner felt crashy over potholes this past year. Not only was the remaining bump stop substantially shorter than it should’ve been, time had also hardened it to the point where it was harder than expired Weetabix. Just look at the new bump stop on the right. Pliable, tall, complete.

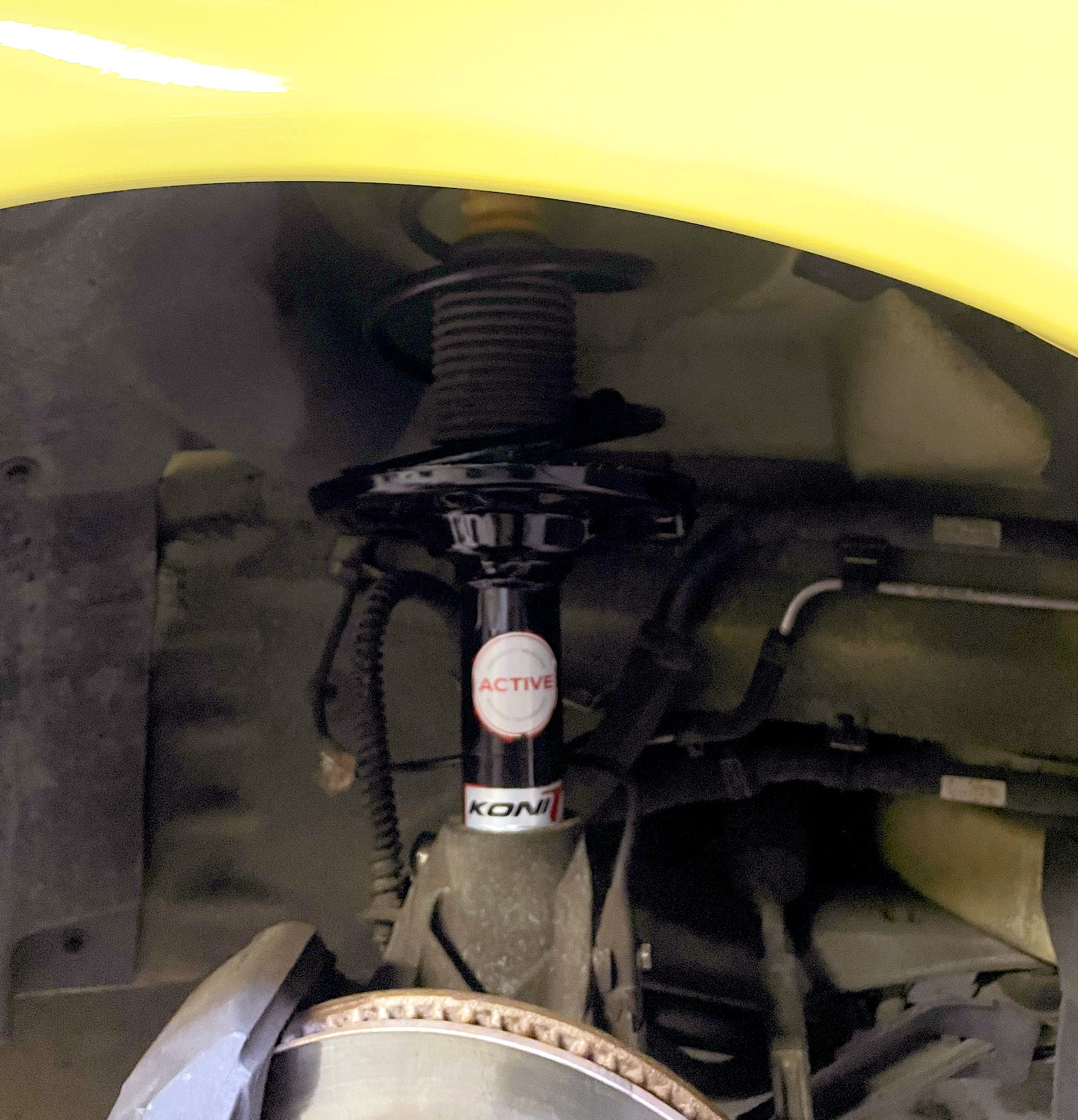

While the old dampers definitely weren’t blown, the new dampers just damp more than the aged originals. Plus, I now have new bump stops, strut bearings, and strut mounts up front. While I’ll have to wait until Spring to see how they feel, the really challenging part is yet to come. See, doing the front dampers on these cars is fairly easy, but the rears demand five hours of book labor, including disconnecting the CV axles. Still, probably worth it.
So, if you drive an older car and haven’t checked your bump stops in a while, check them soon. New ones cost just a few dollars each, and might really help how your machine rides over heavily potholed roads, train tracks that are a little more severe than they look, that sort of stuff. They can also just age out quicker than your bushings, so even if you shake the wheel and everything seems fine, have a gander and see how those bump stops are doing.
Top graphic images: Thomas Hundal
