I’m quite pro-hybrid. They may seem overly complicated at first glance – you do have, essentially, two parallel drivetrains, after all – but the combustion drivetrain’s strengths and weaknesses dovetail so nicely with the strengths and weaknesses of the electric drivetrain. For a hybrid to work and deliver what it promises, like improved fuel economy and reduced emissions, both drivetrains need to work, which means the battery for the electrical drivetrain needs to be, you know, functional. This is obvious. What’s less obvious is how much of an Achilles’ heel many of these batteries have, and how vulnerable the batteries can be to expensive failures, especially if the hybrid owners have a dog.
I know this may sound strange – why should dog ownership affect something like hybrid battery longevity? It all comes down cooling. Not the dog’s cooling – they’re very skilled at panting to shed excess heat, I mean the battery cooling, which, in the case of many hybrids from Toyota, Lexus, Honda, Kia, and others, depends on air cooling through a set of vents dedicated to this purpose. If this vent gets blocked or clogged for any period of time, the battery can overheat to the point of failure, leaving the owner with what is effectively an underpowered combustion car that’s dragging around about 1,000 pounds of now useless hardware, and, of course, fuel economy and performance will suffer significantly.
If the battery does fail, it’s also an expensive repair; for example, a replacement battery for a Toyota Corolla Hybrid can range between $2,000 and $8,000. That’s not cheap.
So why am I singling out dog owners here? Because dog owners are likely to have covers on their rear seats to protect the seats from their sloppy, goofy, friendly furry friends, and those covers often block these crucial vents. Also, dog hair can clog these vents and their associated filters, leading to cooling issues that way as well.
I don’t think the crucial nature of these hybrid cooling vents are as well understood by owners as they should be, which is a big part of why I’m writing this. I have friends with dogs and hybrid that have had a seat cover that blocks these vents, and our own Bishop told me he was just in a Toyota hybrid Uber that had seat covers that blocked the hybrid battery cooling vents. A blanket under a baby seat, placed to protect the upholstery, could block these vents. Some reusable grocery bags that you keep in your rear footwells could block these vents. A thrown jacket could. There’s just so many, many ways to block these vents without even having to think about it too hard.

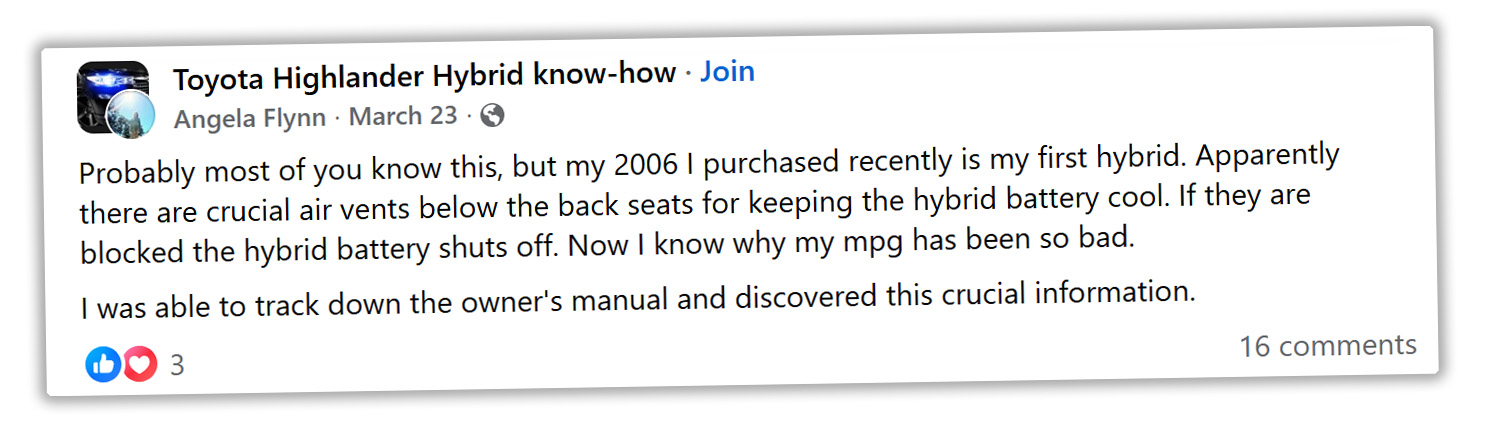

Some people are aware of the issue, of course, and actively try to find seat cover solutions that won’t potentially kill their battery, but plenty of other people have no idea what these vents are or how crucial it is to keep them unblocked. There are posts from people on forums where they’ve only discovered why their fuel economy has tanked after its too late and their battery could already be ruined:
In the case of that Highlander owner, the battery/hybrid system shut down to prevent more damage, which is better than total battery failure, but it’s still not great, by a long shot.
So, why is it like this? Objectively, placing a crucial vent in the area of the back seat feels like a terrible, unforgiving idea. Aside from dog-protecting seat covers, there are just so many ways those vents can be blocked. Packing for a long road trip with a friend? Who among us hasn’t used the rear seat area to store cargo or camping gear or whatever on a long trip. If you do that in your Highlander or RAV4 or Kia Nero or whatever, you could very easily block those vents quite effectively without even realizing it.
The reason the vents are inside the cabin at all is because the carmakers were trying to be smart: they know the battery wants to be about the same temperature as humans want to be, and they know the cabin of the car will already likely be either warmed or cooled by the HVAC system, so that’s ideal air to pull, temperature-wise.
The problem is that it seems like very little thought went into the positioning of these vents beyond that. They’re so easy to block, and the consequences for that blockage are so severe, it all feels like a very unforgiving design decision. Could these not have been placed, say, high on the B or C pillars, in places unlikely to be covered by bags or seat covers or dogs? They’d need more ducting to get to the underseat battery, sure, but it seems like a better place for these vents.

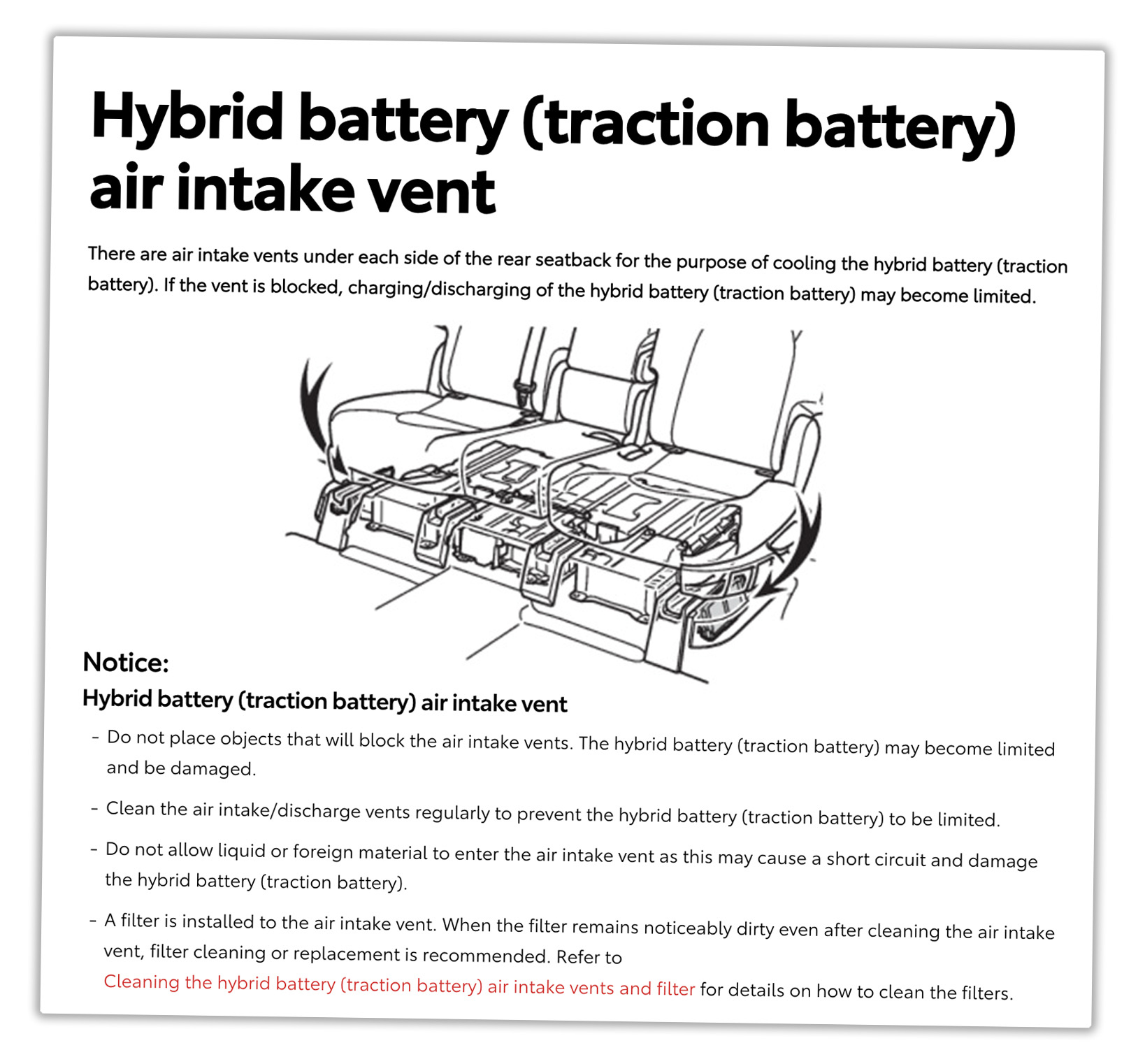

Also, how many hybrid owners know that often these vents have filters that require cleaning? I bet not enough.
To add an extra level of complication, on some cars, the vents are the designated place to blast water into in case of a battery fire:
…so a longer duct/path to the battery via a vent could be an issue for that, but I still think there has to be a better solution for these crucial vents.
Carmakers can’t expect owners – especially second or third or whatever owners – to know what these nondescript vents are and how crucial they are. Perhaps they should have warning stickers right on the vents warning that they should never be blocked? Or, ideally, the locations of these vents need to be rethought more completely. Low-set and right by the seat bottoms or backs are just areas that are far too likely to be blocked from airflow for entirely normal, commonplace reasons. It’s just bad design to require these areas to be perpetually unblocked and free for airflow.
I know it’s an engineering challenge, but this feels like a worthwhile one to solve. There must be ways to integrate these vents into the pillars or ceiling and get them away from where something as fundamental as gravity is conspiring to block airflow. I’d even take a simple warning light to tell the driver if the vent is blocked!
This is a design problem, not a user problem, but current hybrid owners are the ones who are at risk. If you have non-gearhead friends with hybrids, I think it’s worth pointing these vents out to them and at least making them aware of how important they are, before they leave a bag back there blocking a vent, or put on a seat cover or something like that over them. You could be saving your unwitting pals thousands of dollars, and keeping their dogs from getting the blame for an expensive repair.
