What parts of your car have you modified? For many of us, custom wheels are a given, while body kits, exhausts, and air intakes are all popular mods as well. Few of us, however, are customizing our gauge clusters. But maybe we should be!
Posting to Instagram, artist Ronnzoni of Hatem Graphics shows us how it’s done. As it turns out, you don’t need some fancy decal cutter or expensive printing gear to upgrade your gauges. All you need is a brush, masking tape, paint, and the artistic ability to deliver.
Obviously, Ronnzoni’s skills in this regard are far beyond the average. And yet, it’s wild to see just how sweet a set of standard gauges can be with the right treatment.
View this post on Instagram
The instrument cluster in question comes from a Mercedes-Benz E-Class of the W124 generation. These cars were noted for their solid build and good reliability, and had that austere German quality when it came to things like the dials and switchgear.

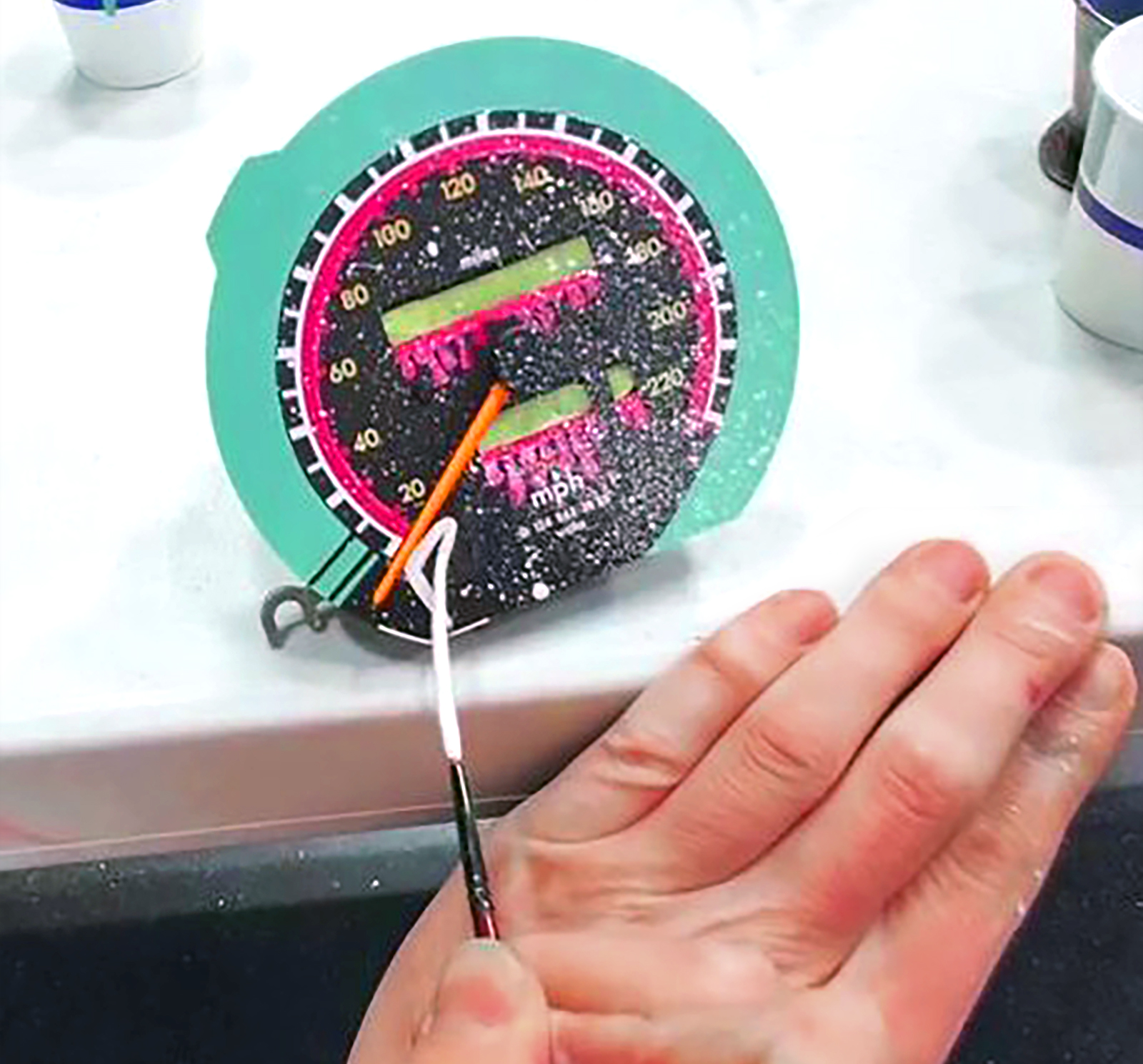

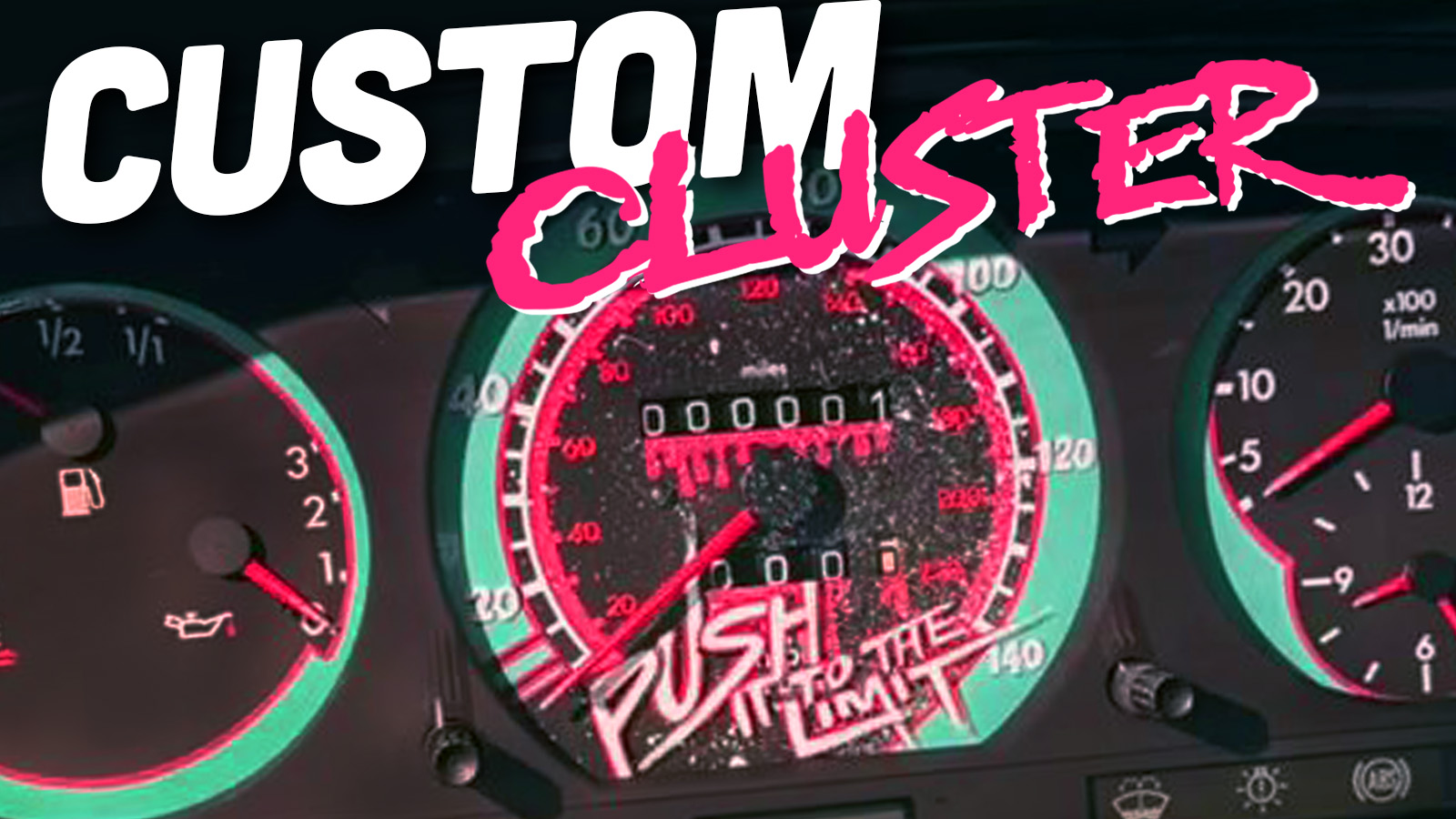

Ronzzoni gave the clean German cluster a graffiti-style upgrade straight out of the 90s—the proper treatment given the car’s decade of manufacture. The outer dials are simply rimmed in pink and bordered in teal. As for the main center gauge, the speedometer got custom lines and numbering, along with speckles, dripping paint effects, and an exhortation to PUSH IT TO THE LIMIT – though it’s unclear if the limit to be pushed is the Merc’s speed or its mileage. Amusingly, the odometer within the cluster has been reset at some point in the disassembly process, so perhaps it refers to the former rather than the latter.

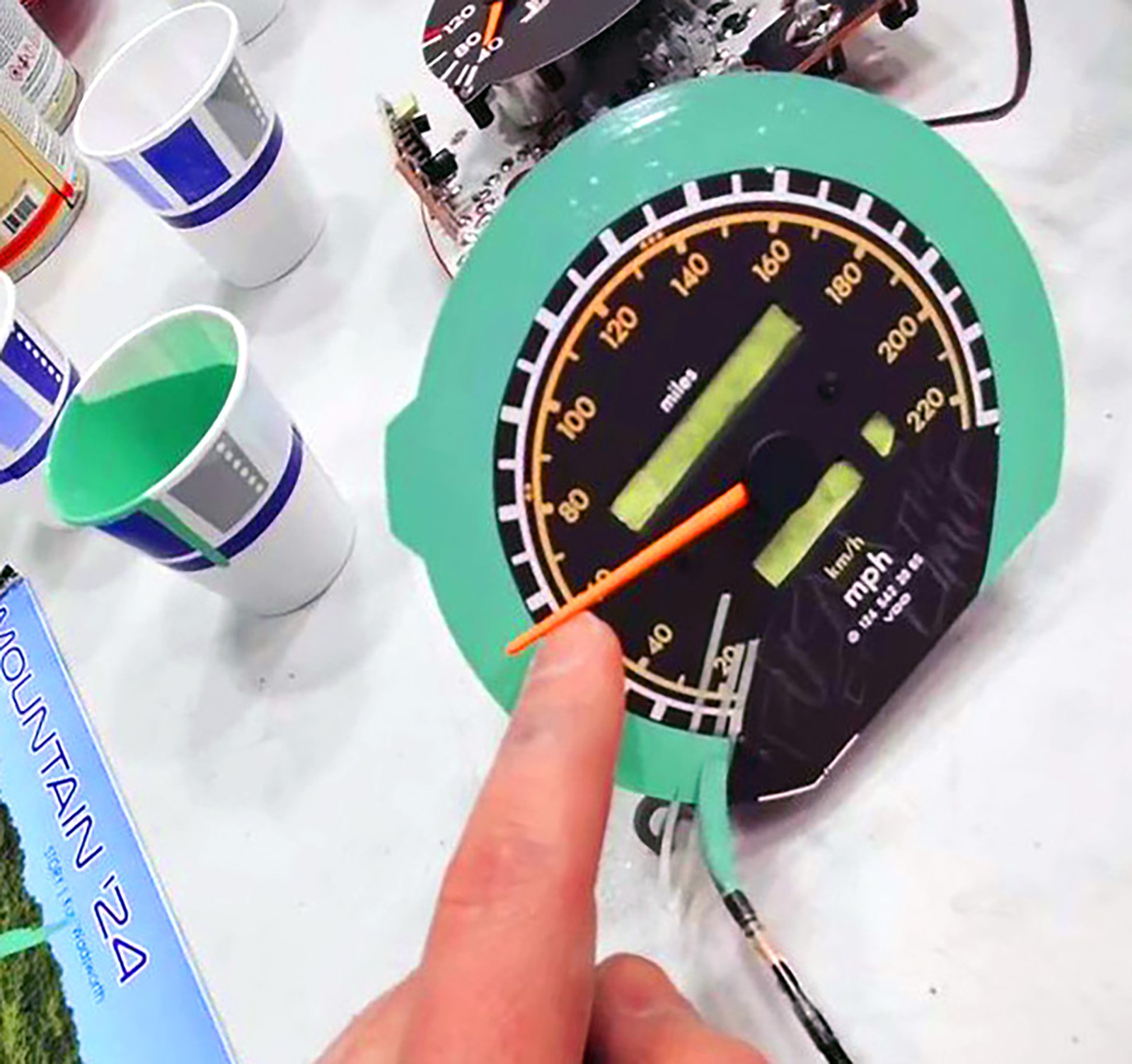

Painting like this requires great control to get right. As is obvious on Instagram, Ronnzoni has honed his painting and masking skills over many years of hand-painting graphics on custom cars. If you want to tackle such a project yourself, you’ll need to practice your numbering and line-tracing skills before starting on your car’s actual gauge cluster, or just rely on masking and stencils if you’re not that good. Another thing to note is that you want to do mods like these in as clean an area as possible. There’s nothing worse than reassembling an entire cluster and putting it back into your dash just to realize there’s dust trapped inside and a hair is stuck on the temperature gauge.
The hand-painted gauges are just one part of the car’s customization. In an earlier post, we see the gauges are color-matched to the car’s teal interior. The checkerboard headliner is an additional treat.
View this post on Instagram
The coolest thing about this project? It’s fun. Dash clusters are usually pretty dull, and they have been since the early 90s. That’s particularly disappointing given the gauges are the prime interface between the driver and the car. If you’ve got the time and tools to take apart your dash and some art skills (or you’re good with electronics, if you want this look), you can make yourself a far more interesting cluster that will inspire you every time you get in and drive.
Image credits: @Hatemgraphics via Instagram video screenshot
