Delaware Found A Genius Way To Stop Trucks From Hitting Low Bridges By Dangling Boat Fenders From Poles

One of the most hilarious auto-related Internet sensations is watching a big truck attempting to fit under a low bridge. It always ends poorly for the truck, usually with a large chunk munched off the top by the bridge. While it’s fun to watch, trucks crashing into low rail bridges is a serious problem, as not only do the trucks get damaged, but traffic has to halt on the road and on the rails as the accident is cleared up and the bridge is inspected. Ideally, these crashes just wouldn’t happen at all, but too many drivers keep messing up. For the past few years, the state of Delaware might have found the best solution yet by placing giant plastic balls before a bridge. Here’s how so-called “Clanker Balls” have saved both trucks and bridges from hits.

America’s roads are full of bridges that offer varying levels of clearance underneath. If you’re driving down the Interstate Highway System, you can usually expect 16 feet of clearance between the pavement and a bridge. This number reduces to about 14 feet in some urban areas. These clearances generally work because the typical tractor-trailer sits at 13 feet, six inches high.

However, the bridges found on local roads may vary. Many of the old rail bridges peppering America’s secondary roads offer far less than 14 feet of clearance because they were built before modern standards. The most infamous bridge is the Norfolk Southern–Gregson Street Overpass in Durham, North Carolina, which is also known as the “11-foot-8+8 Bridge” or the “Can Opener Bridge.” This bridge, which isn’t even the lowest that you’d find in America, attained its infamy because an office worker near the bridge pointed some cameras at the bridge for all to watch. Take a look!

When Old Infrastructure Meets Modern Traffic

These many low bridges across America cause headaches for trucks on the road because their drivers have to route around them, hopefully not causing any other problems in the process. If the drivers ignore warnings or don’t realize how tall their trucks are, they may end up clogging both road traffic and rail traffic after slamming into a bridge. These bridges sometimes need to be repaired after a hit from a truck. One crash can cause a ripple effect on a particularly busy rail line as trains have to stop.

In a perfect world, these accidents wouldn’t happen. The approaches for these bridges have yellow signs that clearly call out their low height. A trucker should also always know how tall their vehicle is. However, signs are only effective if drivers look at them. Likewise, the signs aren’t any help if the driver doesn’t realize how tall their vehicle is, as might be the case for someone driving a rental truck or someone towing a fifth-wheel camper.

Sadly, the solution isn’t as simple as you’d think. These bridges often cannot be raised easily, and roadbeds sometimes cannot be lowered easily. Raising a rail bridge would require a reconfiguration of the rail grade approaching and departing the bridge. The bridge would then be rebuilt, causing delays or full stops on the rail line for potentially months. Of course, this would cost the bridge’s owner, usually the railroad, millions of dollars.

Lowering the roadbed might be difficult due to any infrastructure that may be under the road. Of course, this would also take time and cost a town a ton of cash. Even when the infamous Can Opener Bridge was raised, it was increased only eight inches to 12 feet, four inches, so it still messes up trucks.

Convincing Big Trucks To Stop

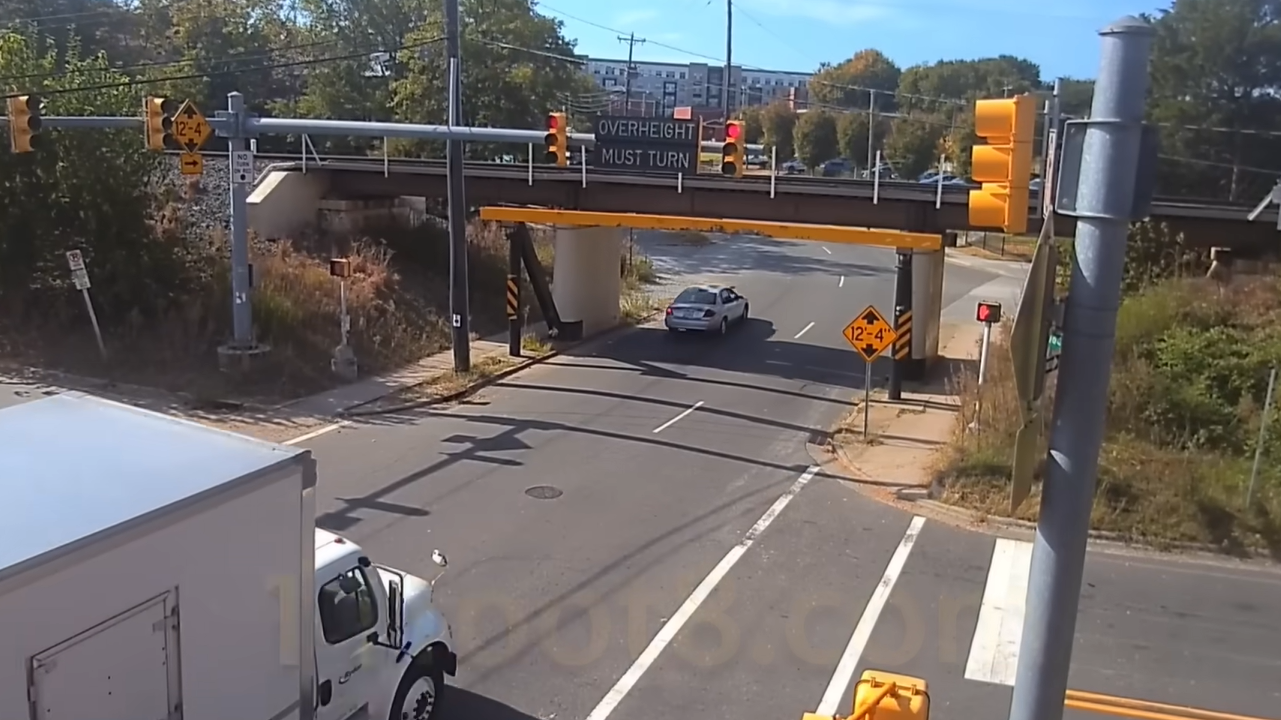

The alternative is to develop a solution to stop trucks from slamming into the bridge in the first place. At the Can Opener Bridge, for example, a sensor placed a half-block from the bridge detects when a truck is too tall, and then triggers an LED board to flash in an attempt to warn the driver. The traffic light in the intersection before the bridge also automatically turns to red. In theory, a driver approaching the bridge has 50 seconds to react before hitting the bridge, and there are warnings all over during the approach.

Yet, drivers still ignore all of the warnings, run the red light, and let the Can Opener Bridge slice their trucks open. Since drivers still can’t get the message, the North Carolina Railroad Company has a heavy steel crash beam that munches up the trucks so the bridge doesn’t get damaged.

The state of Delaware has taken a different approach. There is an infamous train trestle in Newark, Delaware, along Casho Mill Road.

This bridge, which has been around since the late 19th century, originally offered 11 feet, one inch of clearance. In the modern era, the bridge offers only eight feet, seven inches of clearance. This bridge makes the Can Opener Bridge seem roomy in comparison. The Casho Mill Road bridge is so short that it can easily trim off the tops of camper vans and lifted SUVs, forget about any sort of commercial vehicle.

As such, this bridge, which is just one of many short bridges in Delaware, has been beaten up by tall trucks throughout its long life. Mark Luszcz, the Delaware Department of Transportation’s Deputy Director for Operations & Support, published a presentation where he even found a news report from the 1970s about the bridge eating a truck.

Between 2005 and 2022, the Delaware Department of Transportation says, 78 vehicles crashed into the bridge. Eight of those crashes happened in 2021 alone, with another six crashes occurring in 2022.

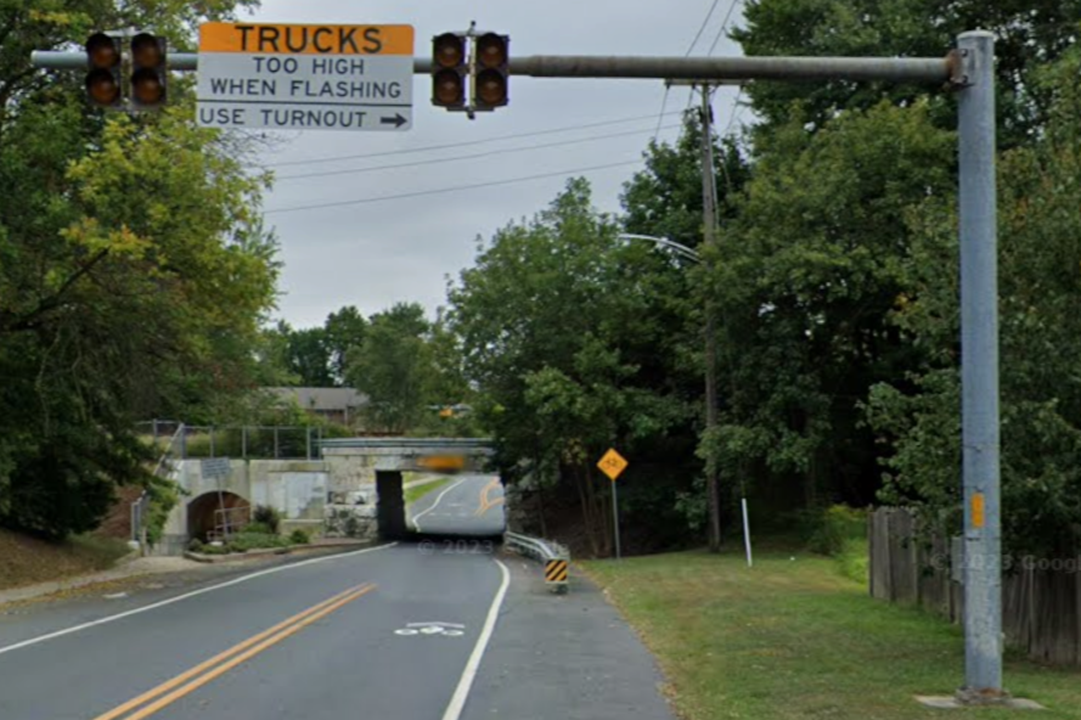

The state has been trying to curb the crashes, with most methods being unsuccessful. In 2003, the state installed a set of lights that flash and are accompanied by a sign that says “Vehicle Exceeds Tunnel Height When Flashing”. Drivers ignored both. In 2017, the sign next to the lights was updated to say “TRUCKS – Too High When Flashing – Use Turnout”. Another sign was added to the bridge height marker that said: “Your Truck WILL NOT FIT”. Again, drivers ignored the lights and signs, just like they do with the bridge in North Carolina.

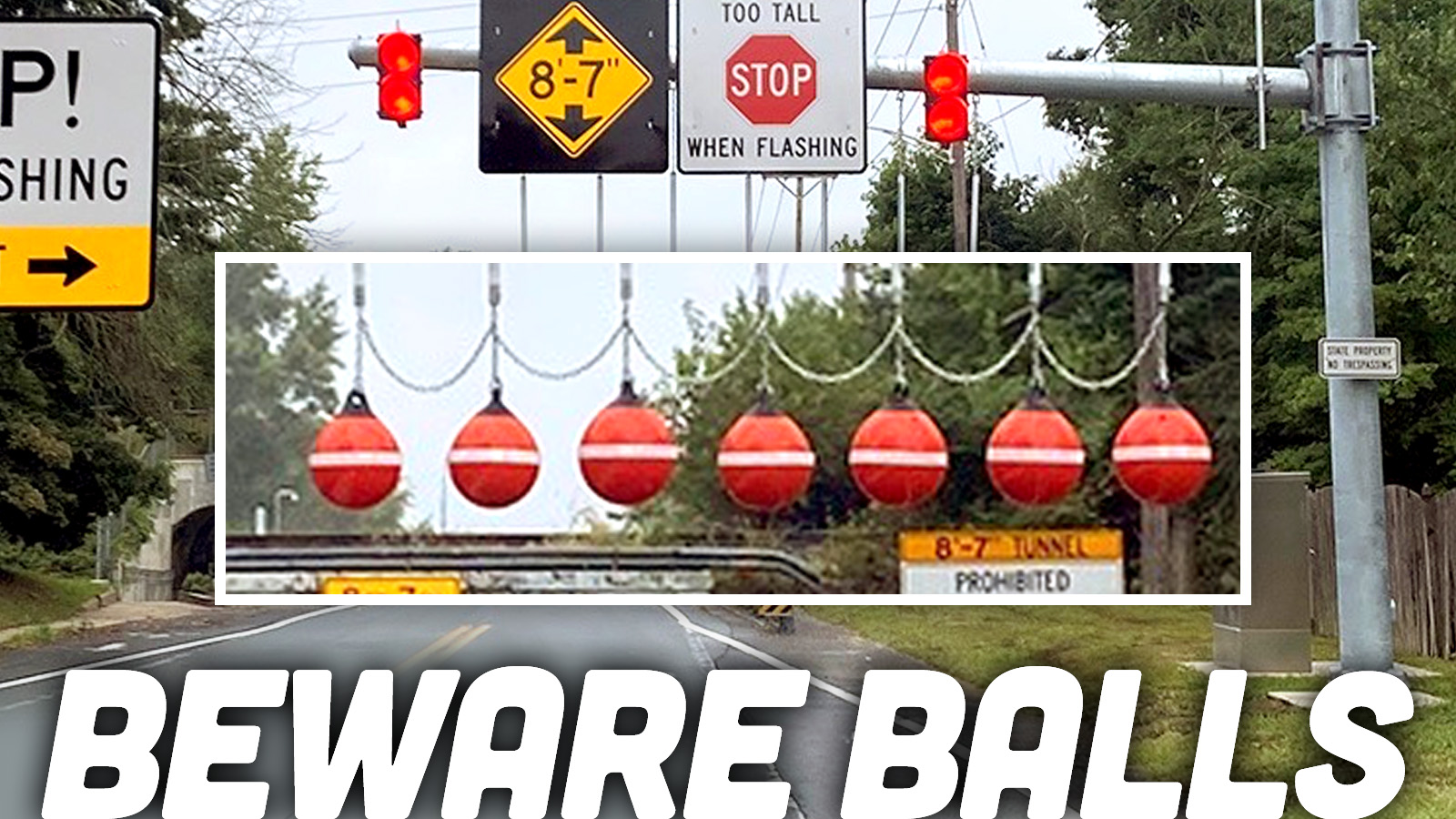

Delaware’s Big Orange Balls

In 2018, CSX Transportation had become tired of trucks running into its bridge. So, it petitioned the Delaware Department of Transportation to close the under-grade crossing and then to fill the hole in so that no vehicle may ever crash into the rail bridge again. This lit a fire under Newark and Delaware state officials to try to fix the issue.

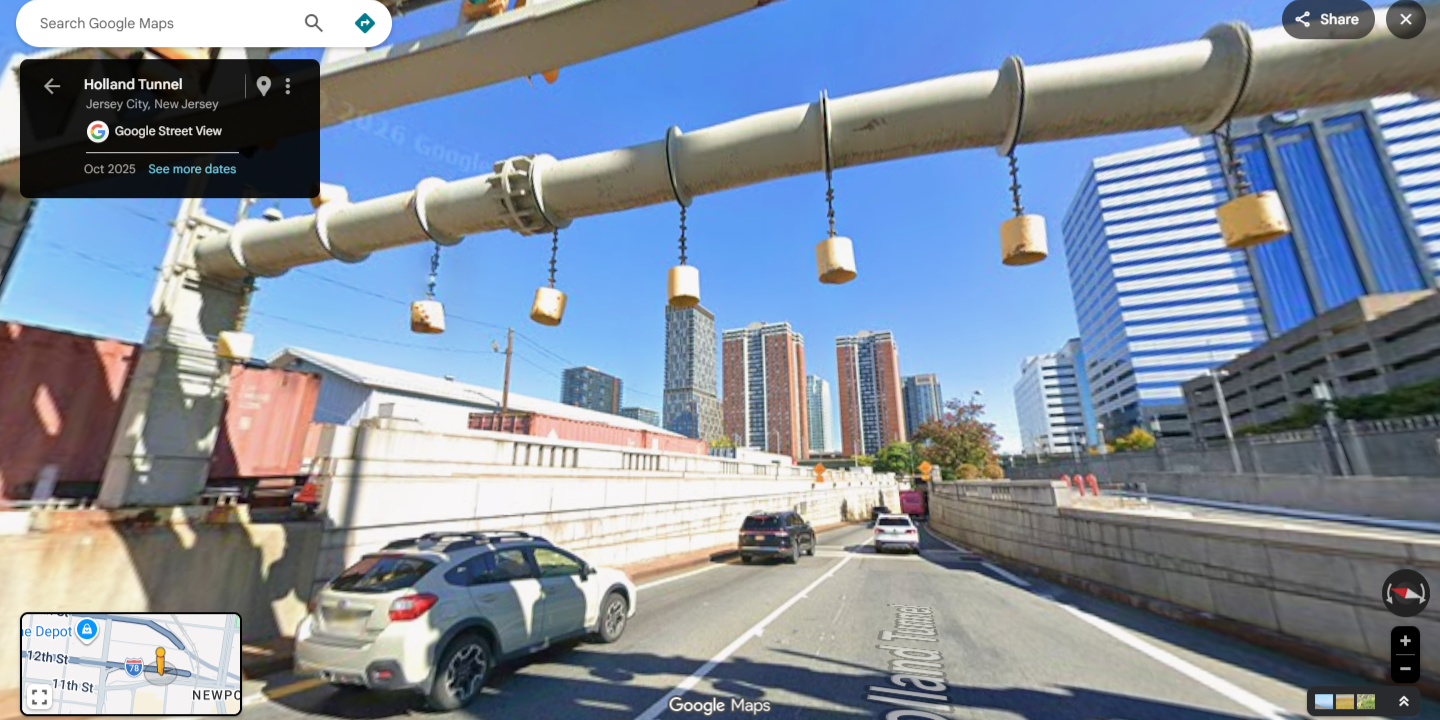

In 2019, the Delaware General Assembly proposed a solution. What if Delaware started using an over-height vehicle warning system? Such systems were already in place at the NYC Port Authority and parts of Pennsylvania and New Jersey. These systems were simple, too, utilizing a set of metal cans dangling from an overhead beam. If an over-height truck approached a low bridge, it would slam into the metal cans long before hitting the bridge, and its drivers would be alerted, alarmed, and come to a stop.

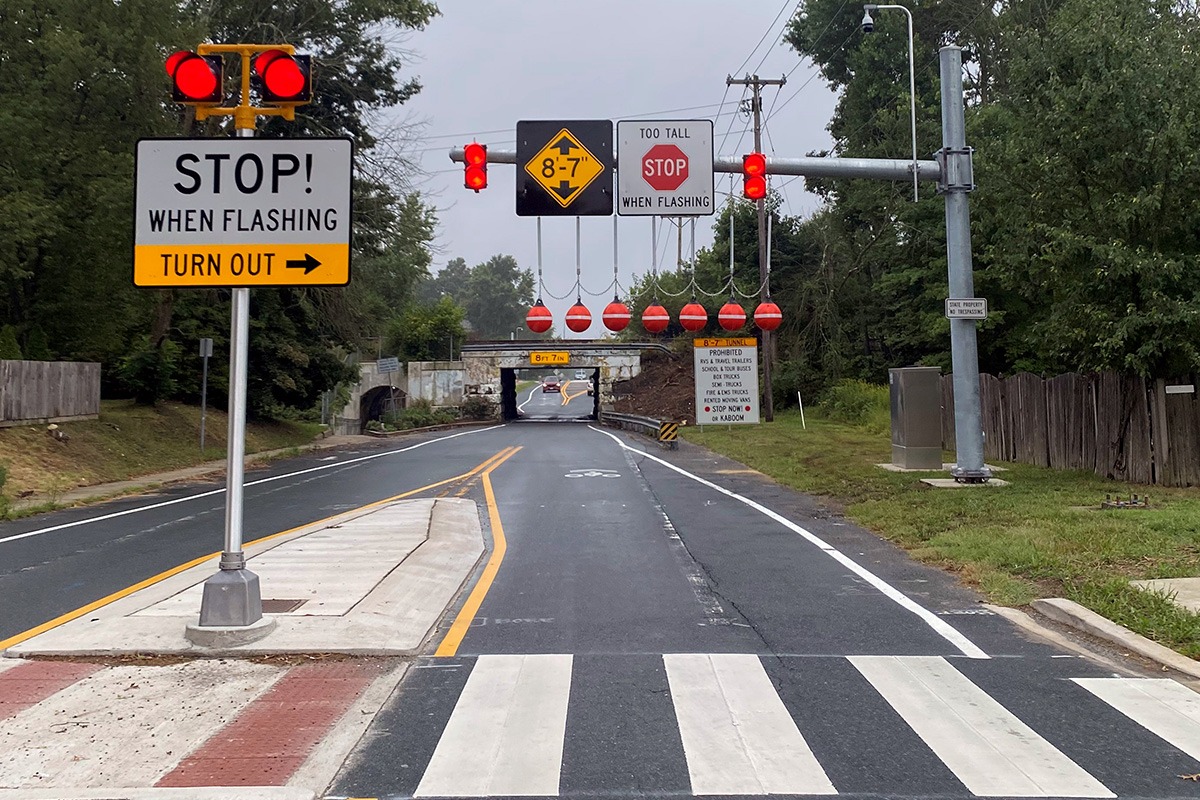

In 2021, the State of Delaware, DelDOT, and the City of Newark penned an agreement to install so-called “clankers” at the Casho Mill Road bridge.

Delaware’s interpretation was a bit different than what engineers found at the NYC Port Authority and elsewhere. Engineers had found that the metal cans of those over height vehicle vehicle warning systems weren’t very loud. They also didn’t look particularly appealing. The solution? They grabbed a bunch of Taylor Made Tuff End vinyl boat fenders.

Apparently, the sound created from hitting a bunch of boat fenders sounds more like a loud boom than a clank, but the nickname “clankers” stuck, anyway. The existing signage and lights were retained as well.

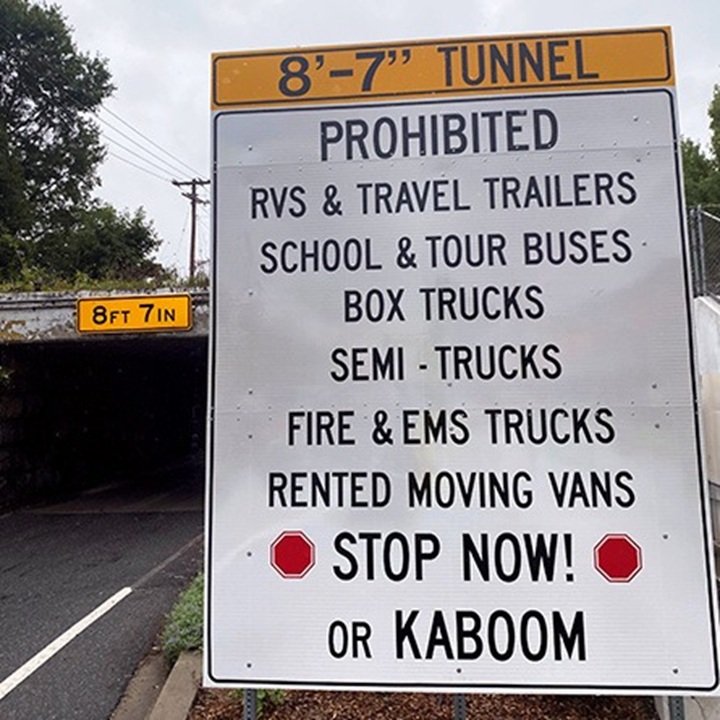

Whitman, Requardt & Associates, LLP, the engineers behind the project, added an additional sign that’s not only so huge that you basically can’t miss it, but also says in bold letters that if you don’t stop, your truck will go “kaboom”.

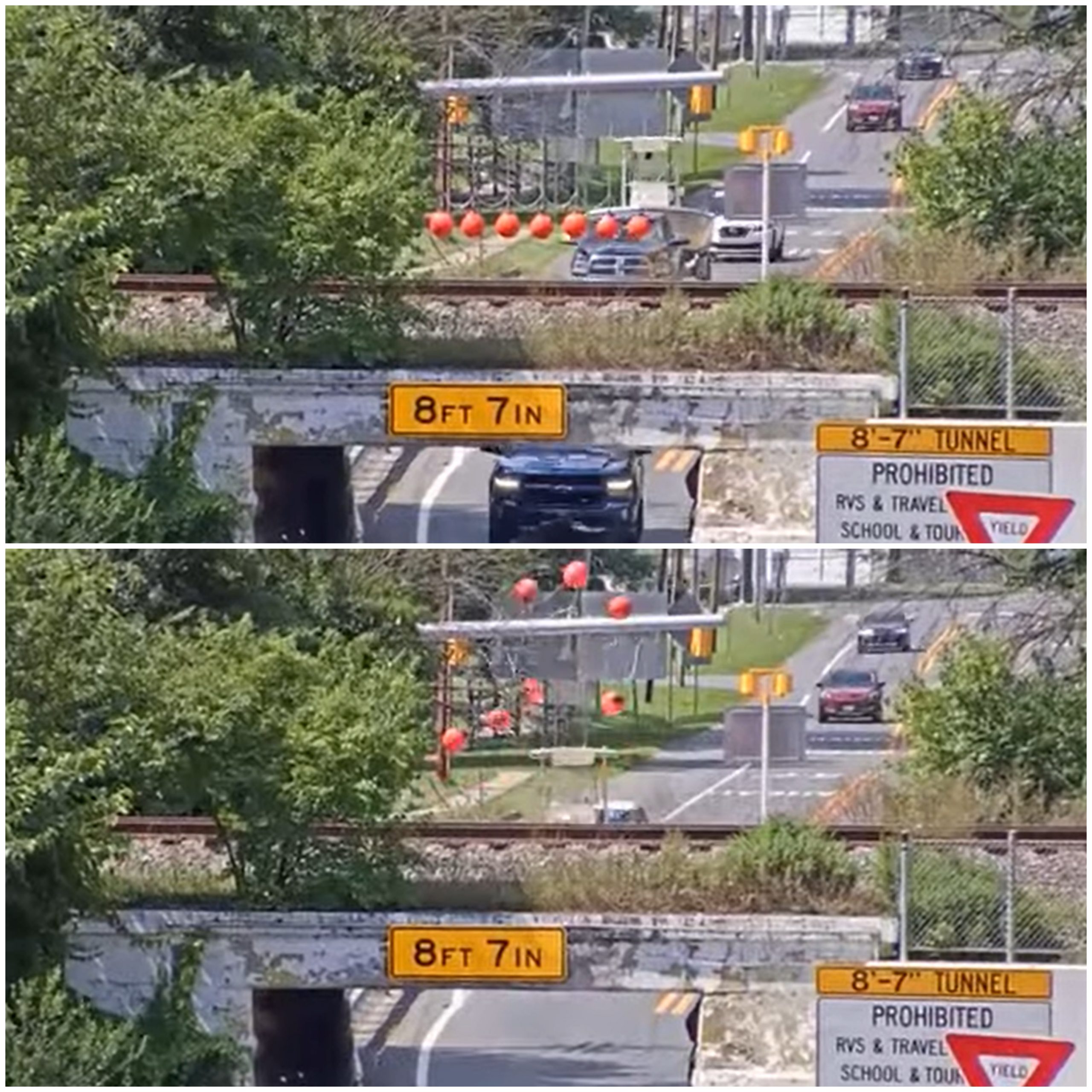

Add it all up, and there’s a lot of drama when a truck hits the clankers. The boat fenders make a loud boom and bounce all over the place while connected to their chains. Usually, the driver of the truck is snapped out of whatever daze or distraction they’re in and slams on the brakes. Then they see the sign warning of impending doom and decide not to press forward.

DelDOT admits that the signage and hanging boat fenders are not Manual on Uniform Traffic Control Devices-compliant. However, the state, the city, and residents do not care because the clankers have been super effective. In 2023, there were zero reported crashes at the bridge; the first time such has been recorded since 2005.

The state, city, and locals have also had some great fun with the clankers. People have decorated their homes with clanker replicas during the holidays, fire departments have hung clankers from their trucks during parades, and there’s even a satirical Facebook page that publishes funny posts around the clankers. Weirdly, these boat fenders hanging from a metal bar have become a bit of an in-joke in Delaware.

As NBC10 Philadelphia reports, other clankers have been installed in Milford, Newport, near Delaware Park, and on Chapel Street. DelDOT says that while the clankers have been amazingly effective, they haven’t been perfect. In more recent times, DelDOT has discovered that some trucks hit the clankers, come to a stop, but then continue forward, hitting the bridge. The state believes that the majority of these few remaining incidents may be college students driving rental moving trucks and not understanding what the clankers mean.

Still, the clankers have been so good at their jobs that officials in California, Ohio, and other states have been reaching out to DelDOT to see if they can rig up their own version of the system.

So, if you happen to drive through one of these states and see what looks like a bunch of plastic balls hanging down from a traffic light, now you know why. Those are just simple boat fenders, and they’re there to stop truckers from blowing up their load onto a train bridge. If you’re driving a truck of some kind and you hear a loud boom just before going under a bridge, it’ll probably be wise to turn around. If you don’t, you might just turn your rig into a convertible.

Topshot graphic image: WRA, LLP
