If you’ve purchased a 2026 Ram Heavy Duty truck and have noticed that something is off about your instrument cluster, but just can’t put your finger on it, I have some weird news for you. Ram has just announced a recall, and it’s actually pretty funny. Ram has figured out that it accidentally installed the international-style clusters Canadians get in U.S.-spec Ram HDs, and installed U.S. clusters in Canadian trucks. Amusingly, this is arguably an upgrade for Canadian trucks and a downgrade for trucks in the United States. Let’s get into it.
As you know, your vehicle’s instrument cluster is a vital information center. If your truck is overheating, you will likely see it happening on your instrument cluster before you notice it anywhere else. Likewise, if the engine in your crapbox just lost oil pressure, that little red genie lamp of death will glow, at least for the few fleeting moments of life that your engine has left.
On August 19, Ram published “New Safety Recall Advanced Communication – 79C.” In it, Ram explains that it accidentally installed Canadian market instrument clusters in 2026 Ram 2500HD, 3500HD, 4500HD, and 5500HD trucks. A few days later, Transport Canada published “2025424 – FIAT CHRYSLER AUTOMOBILES.” This recall directly mirrors the one in the United States, but with the opposite problem, as our Canadian friends have apparently gotten superior U.S.-spec instrument clusters.
Give Me A Brake
Something great about instrument clusters is that they’re built to standards. That way, regardless if you slide into a Chevrolet Equinox or a Volkswagen Jetta, you should be able to understand what the symbols on the dashboard mean. Canada follows ISO 7000 standards for instrument clusters.

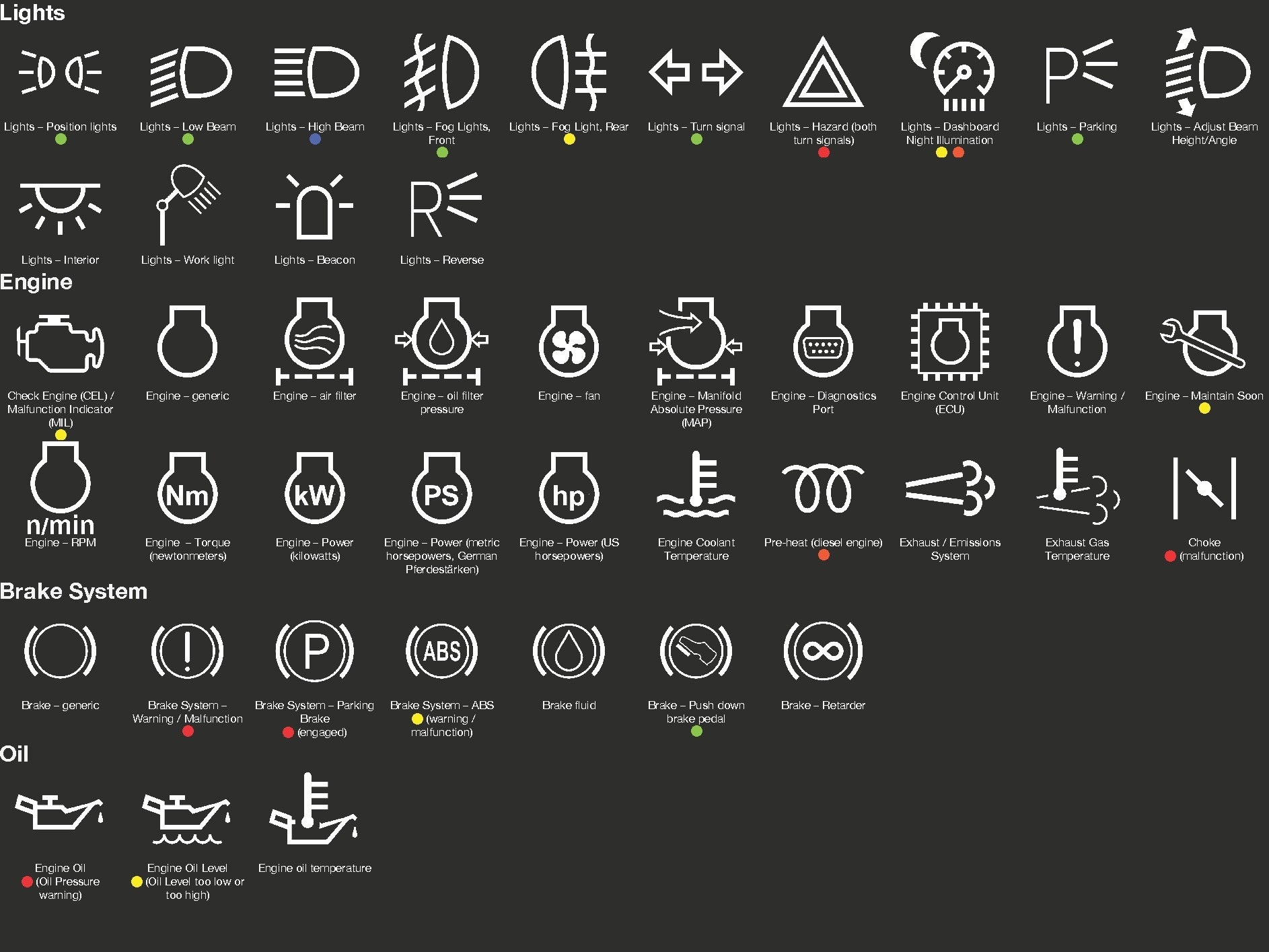

What’s nice about ISO 7000 symbols is that you can understand them regardless of what language you speak. Ideally, you would know that an exclamation point inside of a circle with two part-circles on it means that there’s something wrong with your vehicle’s braking system. Here is a handful of the symbols:
America does things its own way, slightly. Federal Motor Vehicle Safety Standard § 571.101 Standard No.101 Controls and Displays is what dictates what you see on your instrument cluster and more. From the Standard:
Scope. This standard specifies performance requirements for location, identification, color, and illumination of motor vehicle controls, telltales and indicators.
Purpose. The purpose of this standard is to ensure the accessibility, visibility and recognition of motor vehicle controls, telltales and indicators, and to facilitate the proper selection of controls under daylight and nighttime conditions, in order to reduce the safety hazards caused by the diversion of the driver’s attention from the driving task, and by mistakes in selecting controls.

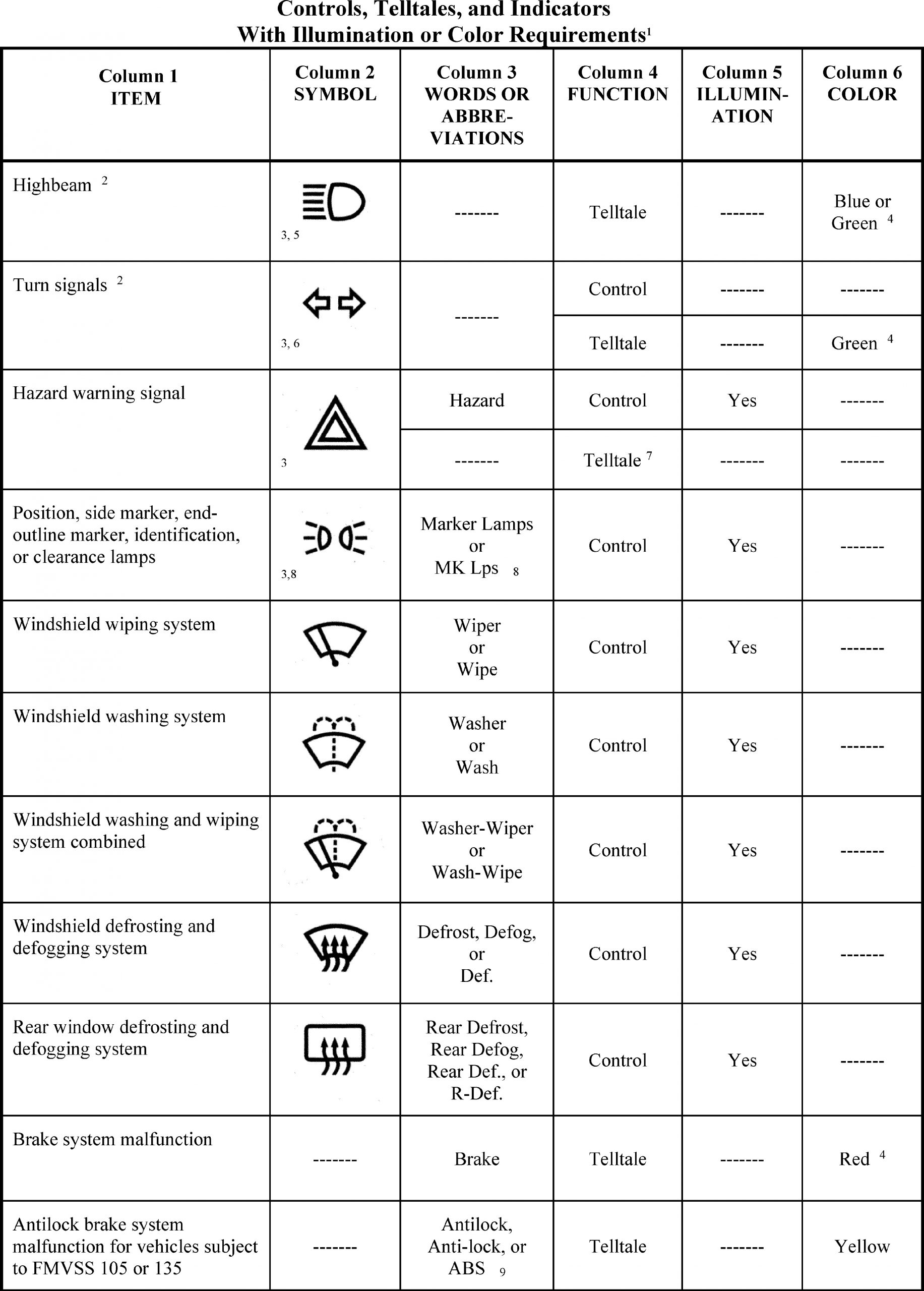

The Standard is ridiculously long, but what matters to us is this chart, which shows what symbols or words an automaker must use:
You’ll notice that, for brake system malfunction, you don’t get the symbol of a brake as you’d get in the ISO standard. Instead, America wants you to spell out a big fat “BRAKE.” Oh yes, it has to be big and fat, too. If the font is too small, as was the case in some 2.2 million Teslas until last year, you’ll make the feds upset.
Of course, accidentally installing ISO standard instrument clusters into U.S. market cars is also frowned upon, and that’s the pickle that Ram has found itself in.
According to Stellantis, approximately 2,885 Ram HD trucks, which were built between April 3 and July 31, are affected by the recall. Approximately 2,453 of these trucks are 2026 Ram 2500HDs. The automaker says it launched an investigation on August 7th and discovered that this batch of trucks has one specific, tiny problem. The only real difference that drivers will notice is that the brake warning lamp will have a picture of a brake rather than spelling out “BRAKE.”
Stellantis also identified an additional 124 trucks that were sold in Canada that have brake warning lamps that spell out “BRAKE” rather than giving the ISO symbol. Yep, that’s it. As funny as this sounds, Transport Canada, the National Highway Traffic Safety Administration, and Stellantis are all taking this seriously, and that’s good! Stellantis says:
Vehicles built with IPCs that display the incorrect brake system warning light may cause a customer to not understand that a brake system problem potentially exists, which may cause a vehicle crash without prior warning.
Marelli North America of Southfield, Michigan, supplied these clusters, and the part numbers in the recall include 68740411AB, 68740411AC, 68740412AB, and 68740412AC.
A part of me is laughing a little, because you could argue that 124 lucky Canadians got a tiny upgrade: a big, scary red light with “BRAKE” in all caps rather than the symbol. In exchange, the States got 2,885 Rams with the somewhat more vague ISO symbol.
Safety First
But I’ll stop being silly here. Obviously, if you’ve been taught to look for the ISO symbol and now see BRAKE, you might get confused. Likewise, imagine a driver in the U.S. seeing the brake symbol and getting confused. As it is, I’ve been asked about the “exclamation point in a beaker” light, which you and I know to be the TPMS symbol, but that person did not. So, logically, even small and seemingly silly errors need to be taken seriously.
Stellantis says to check your mail after September 25, 2025, as that’s when the recall notices will be sent out. You will get a new cluster free of charge. If you have questions, call Chrysler customer service at 800-853-1403 or the National Highway Traffic Safety Administration (NHTSA) Vehicle Safety Hotline at 1-888-327-4236 (TTY: 1-888-275-9171).
Otherwise, you have nothing to worry about. There’s nothing actually wrong with your truck, and if you did not know what the symbol was before, now you do! Your truck is just a tad more Canadian or American than you probably expected, and that’s okay!
Topshot: Mercedes Streeter
