It’s strange, sometimes, the things that get your attention. Sometimes it’s obvious – an attractive person, a vivid burst of colorful design, an eternally leaking sandwich. Other times, it’s more subtle, more about details and qualities that aren’t shouting for you to notice them. Details and qualities like how an inexpensive car’s instrument cluster has been designed. These are the important things, people.

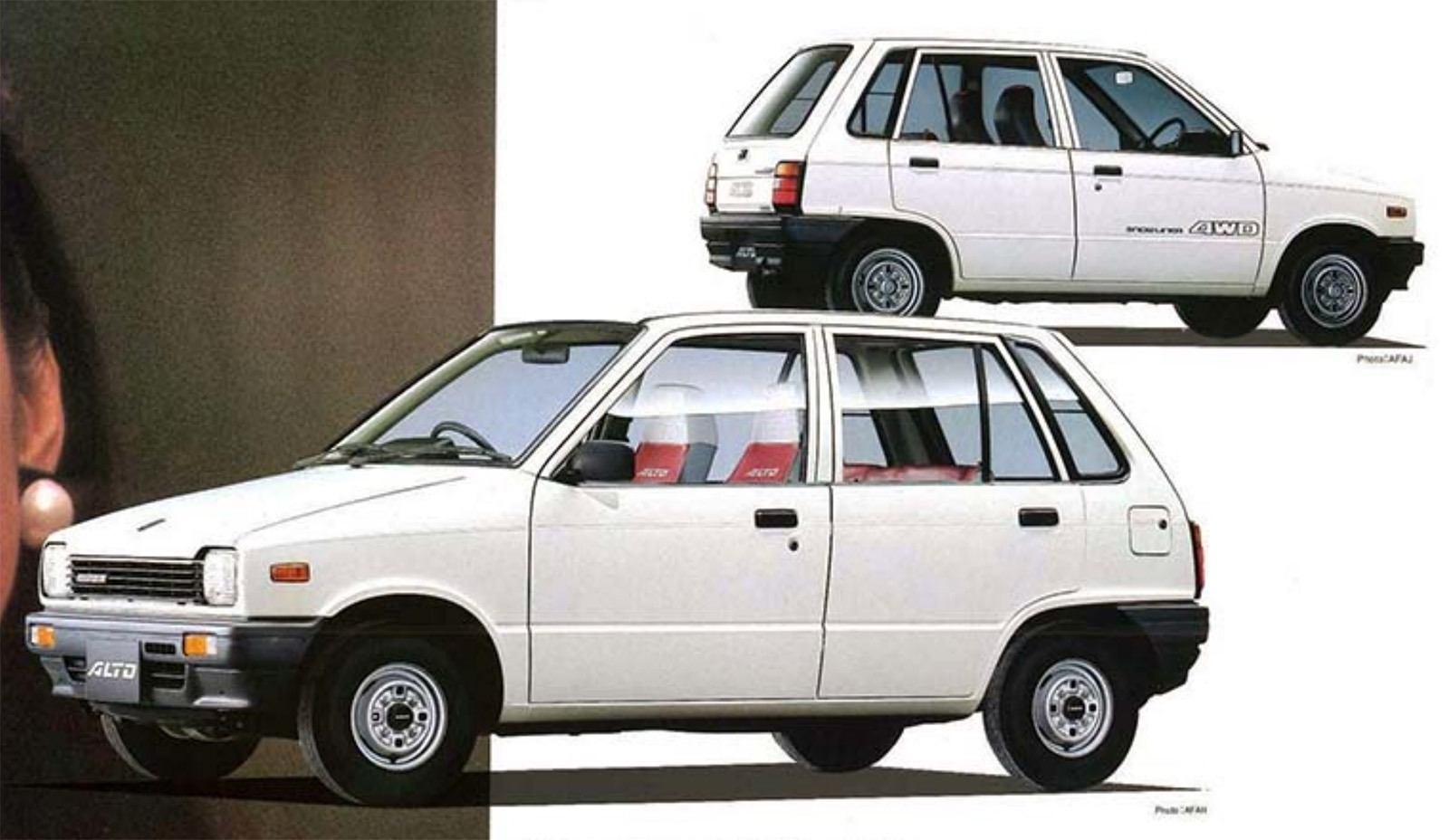

The car I’m talking about is a popular and very rational little car, the second-generation Suzuki Alto. The Alto is very much a people’s car, useful and affordable. It started out in Japan as a Kei-class car with a 543cc engine, but in other markets, freed from the Kei restrictions, it got a 796cc engine, like what it used in one of its best-known versions, the Indian-market Maruti 800.
It’s a great, no-nonsense little car! But it still strived for a certain sense of romance and drama, as you can see in this Japanese-market commercial:
Did you see the rotating front seat!? What? I had no idea they had that; what a strange addition for a little hatchback! Also, that moody woman seems to show up in the brochures, too, where she looms with similar dramatic gravity as the car’s impressive wicker-hauling capabilities are highlighted:
Damn that thing can haul some wicker!
Just for an intresting comparison in marketing, this is how the Maruti 800 – essentially the same car – was marketed in India:
It’s much more of a family car feel in the Indian market, and note how they make a very clear contrast between the family warm and dry in their Maruti 800 next to the rain-soaked family crammed on a motorbike.
But I’m getting off-track! I want to focus on just one aspect of this generation of Alto, beyond its ability to haul dogs and soccer balls and kids with sticks; I’m talking about the dashboard.

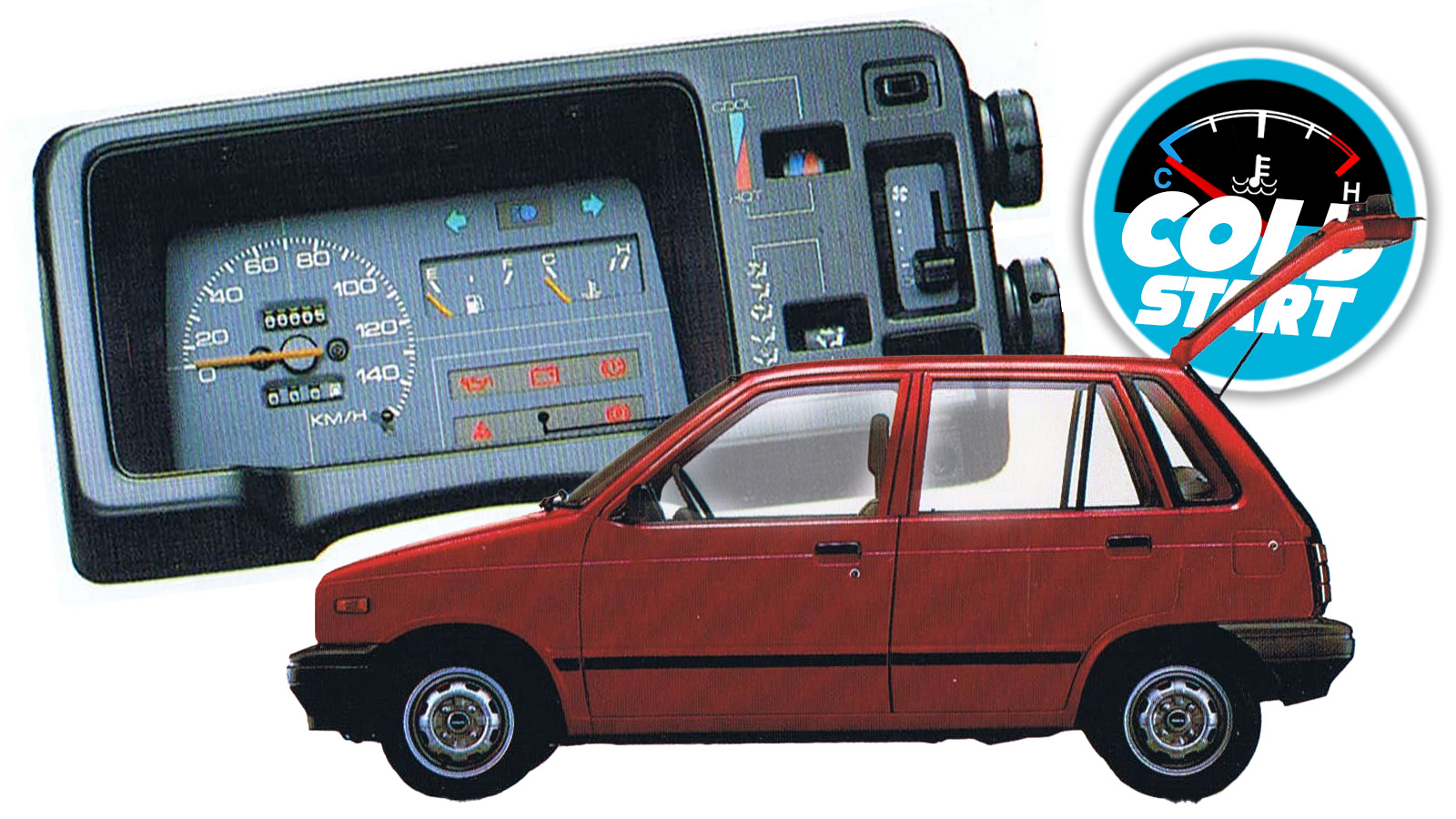

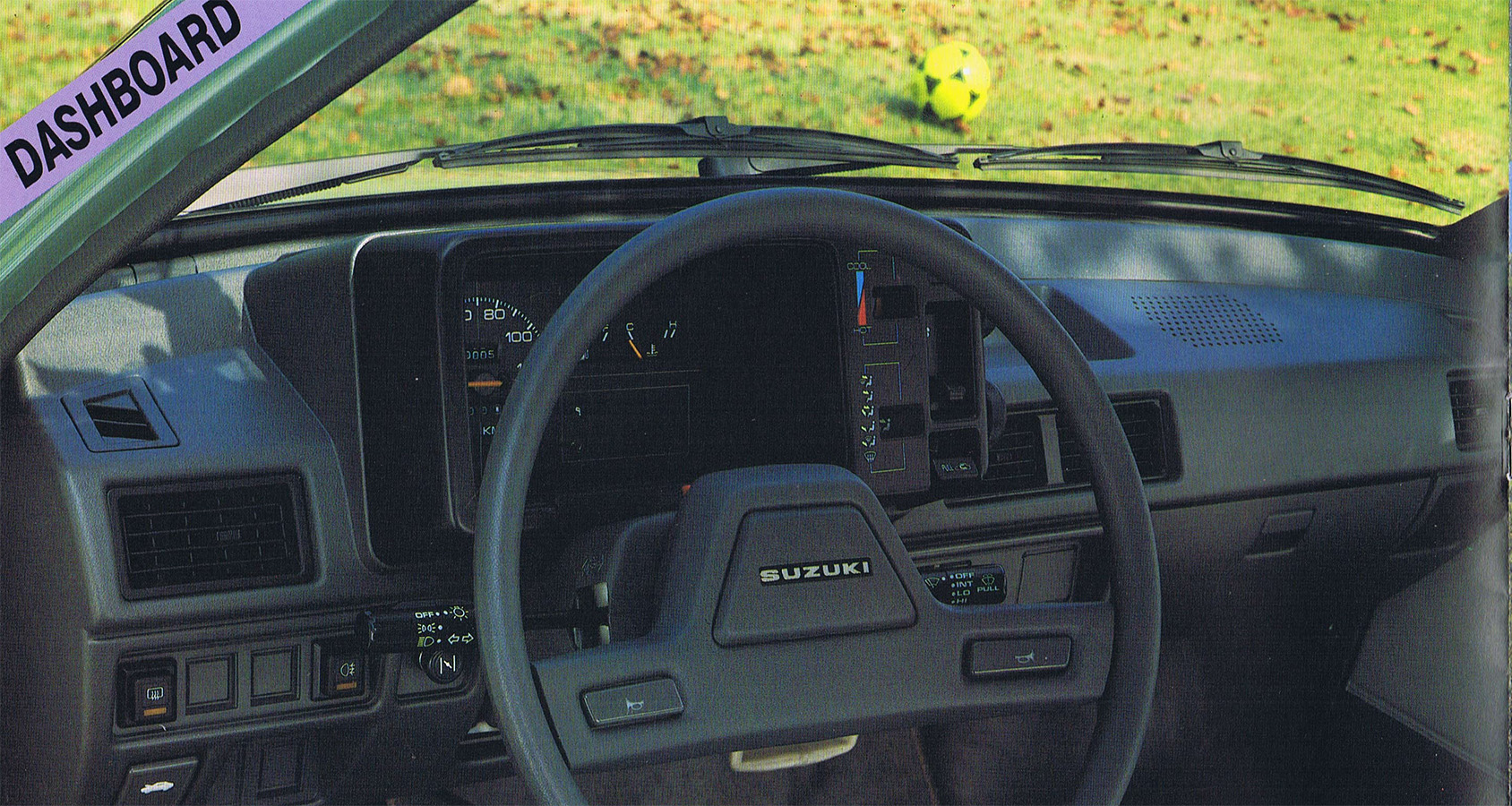

The dash doesn’t look too unusual at first glance, but I want to focus on the instrument binnacle part:

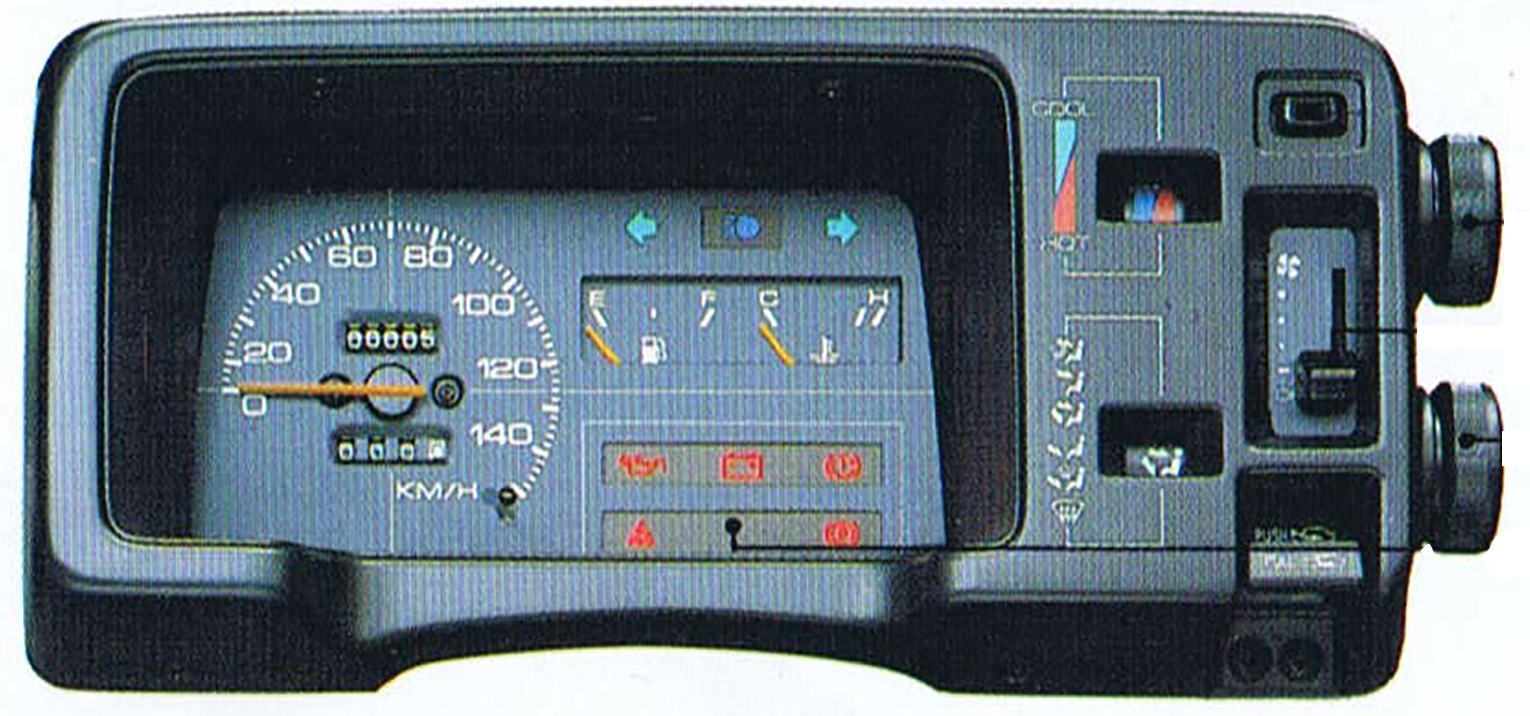

There we go. Here’s why I’m so taken by it – look how much is crammed into this thing: it’s not just the standard set of gauges, but the entire HVAC system controls are in there, too! I’m sure there are other cars that have crammed the HVAC controls into a compact unit by the instrument cluster like this, but I can’t think of others at the moment.
It’s absolutely a cost-saving measure: they just need to make one unit for the instruments and HVAC controls instead of having to make a separate HVAC unit on the lower-middle dashboard. By placing the controls on the edge of the cluster, they’re still pretty accessible to the passenger, too.
The side-mounted knobs control the temperature and the airflow direction – you know, face, feet, windshield, that sort of thing. The knobs rotate icons/graphics in little windows to show what’s selected, which strikes me as a very clear and effective way to do that, more so even than the more common knobs with a pointer, which is harder to read at a glance than this is.
For example, look above and see roughly where the temperature is, and where the airflow is directed. Now look at this more common setup and look for the same things:
I think the Alto’s setup reads a lot faster! Especially this setup, where it’s not immediately clear which lever controls what setting at a quick glance.
It’s such a tidy, contained little unit. I can almost imagine it being sold independently to bolt onto your kit car or home-built car projects, since it has pretty much everything one needs right there in one little box. Maybe it could have lights and wipers on the other side, in case those weren’t on steering column stalks.
Maybe it’s a mundane thing, but I like it. I respect it, like I respect all things that just work, like spoons. Also, I enjoyed using the word “binnacle,” which sounds to me like some sort of mollusk.
Top graphic images: Suzuki
