Pickup trucks are good for a lot of things. They can tow massive amounts of cargo and haul thousands of pounds in their beds. With the right attachments, your average pickup truck can do a whole lot more, like become a piece of genuinely useful farming or industrial equipment.
A recently submitted patent application from one Justin Morgan Nelson of Townsend, Montana, that I stumbled across this morning does just that, showing off a piece of equipment that can bolt into the bed of a pickup and act as a modular forklift or hay bale loader, depending on the attachments it’s equipped with.
While there are plenty of similar pickup bed attachments like this, none of them that I could find have the kind of articulation presented by this idea. In addition to being able to fold flat onto the bed, it can also angle itself on different axes, making farm work or cargo maneuvering that much easier.
If you’ve ever worked on a farm or even driven past one on a highway, you’ve probably seen those gigantic cylindrical hay bales scattered throughout the fields. These haybales, which are usually used to feed livestock, are transported by loading them onto flatbeds. Because of their shape and composition, the best way to get haybales from the ground to the bed of a truck is to either stab them with big metal spears or squeeze them from the side with big grips and pick them up.
This can be done in many different ways with many different pieces of equipment, according to the patent application:
The management of small hay lease properties often results in haystacks at various locations. Transporting equipment between these sites to pick up hay is time-consuming and inefficient. Moving a tractor with a hay loader attachment can take hours and requires a second person for transportation logistics.
That’s where this modular, pickup-bed-mounted loader device comes in:
The present invention provides a solution that makes loading hay and other heavy objects a one-person job, while simultaneously reducing the need for multiple pieces of equipment.
Loading hay using a device that attaches to the back of a pickup bed is nothing new. Search online, and you’ll find dozens of attachments that mount to the trailer hitch, tailgate, or bed itself. A lot of them look something like this piece:

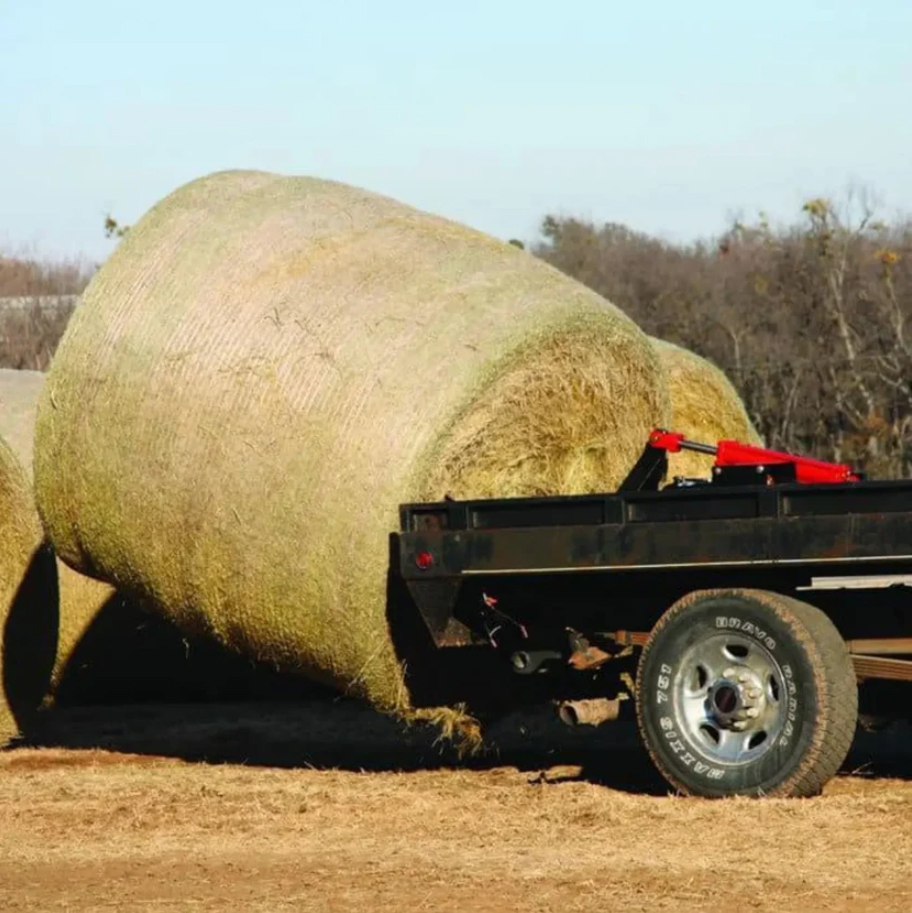

Or, for larger bales, there are devices like this:
For some context, here’s what these things look like when they’re actually moving haybales around:
Where this patent application differs is that it’s more than just a couple of spears that pivot on one axis. The device itself is an apparatus of metal beams constructed to resemble that of a front loader, hydraulically and electrically controlled to adjust on two axes, not just one. This means that in addition to being able to get haybales or pallets off the ground, they can be dropped or placed atop flatbeds with precision.
Being mounted to the bed of a pickup, the device can be tucked into the bed when not in use, allowing the driver to tow a trailer without having to remove it. According to the inventor, this effectively means you don’t need a second vehicle, like a tractor or front loader, to get haybale transport done. From the application:
Unlike a tractor, which is limited to around 15 mph, a pickup truck can travel at highway and dirt road speeds, significantly reducing transport time. The loader also enables a bumper pull trailer to be towed on the same vehicle, making it possible for one person to load and move hay independently. During winter feeding, an operator can drive to a hay stack, unhook the trailer, load the necessary bales, reattach the trailer, and continue feeding all without relying on a tractor, which may be difficult to start in cold weather. This solution is more time- and fuel-efficient, as it consolidates the work into a single vehicle operation.
What I like most about this thing is how easy it is to install and operate. It runs on a 12-volt car battery and can be charged either through a plug to the truck or through a solar panel. It can mount to any pickup with a fifth-wheel towing setup, with a towing ball in the bed, and secures with a standard gooseneck-style trailer latch.
It can also do more than just haybales. Though all of the drawings show the device with haybale spears, they can be removed and replaced with different attachments, such as forks for pallets, buckets for scooping dirt, or even man baskets, which are those buckets that people get into at the end of cherry pickers.
While the rear of an F-150 probably isn’t the best forklift substitute, it’s certainly better than having to go without a forklift at all, or having to buy a forklift or front loader just for a job you’ll have to do a few times a year. As the patent application says, this device is a nice all-in-one solution for someone who’s working by themselves, and would rather have a vehicle that can do it all as opposed to several more specialized pieces of farm equipment. In many cases, having something like this device is more cost-effective and, in some cases, less time-consuming than having to swap to a front-loader or forklift.
