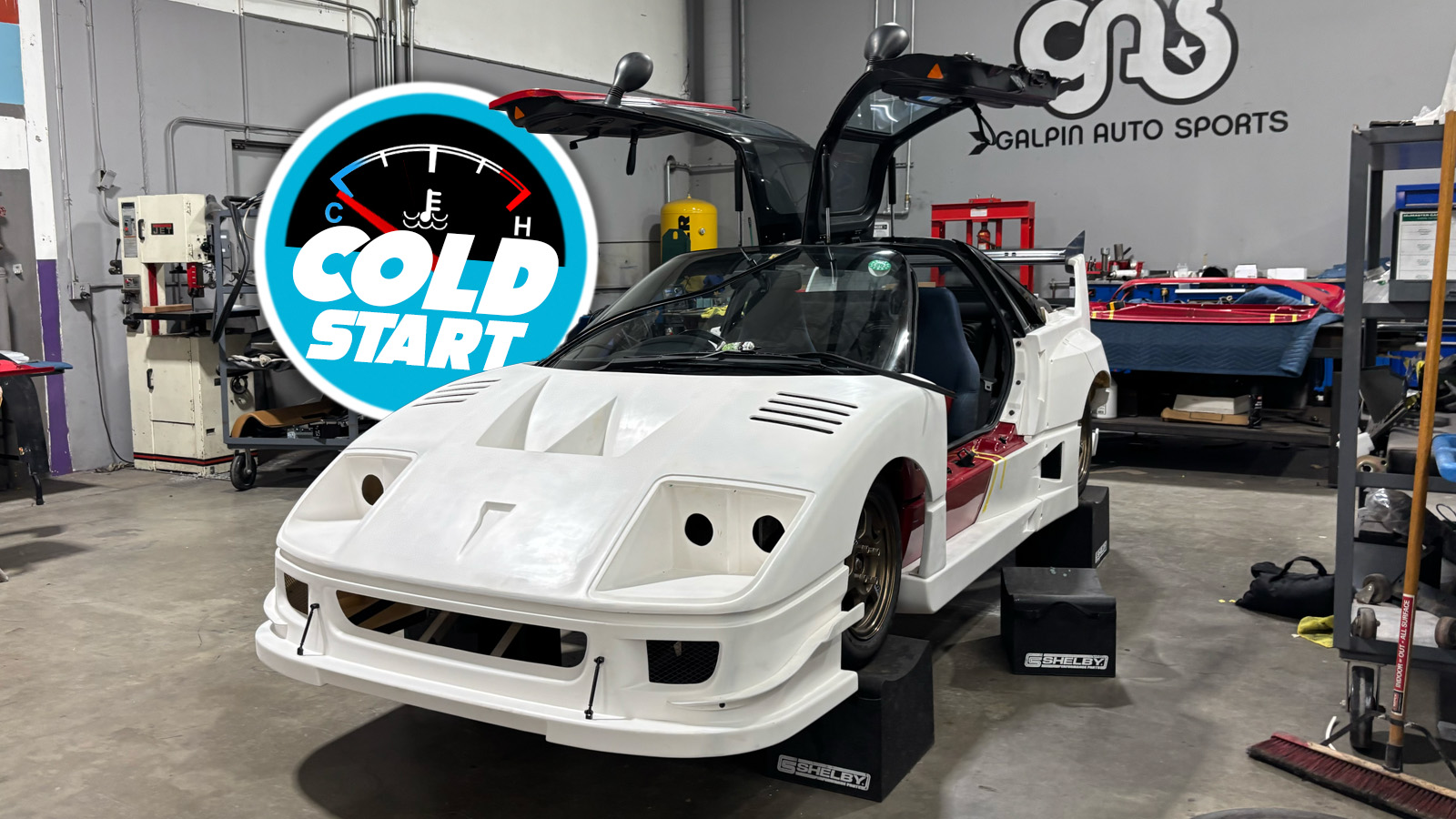

One of the many fun things about coming to LA for our periodic Autopian Leadership Synods is that I get to wander around Galpin Auto Sports and see what sorts of fun project cars they’re working on. I was in luck this time, as there’s something especially fun being cooked up: they’re putting one of those Liberty Walk Ferrari F40 body kits on a tiny Autozam AZ-1. But there’s something not quite right going on, and let’s see if you can spot what it is.
Are you familiar with the Autozam AZ-1? I suspect most of you are, but if not, it’s worth knowing about, because it’s one of the purest expressions of fun and not taking oneself too seriously, rendered in automotive form. Autozam is a sub-brand of Mazda, and the AZ-1 is essentially a Kei-class supercar.
It meets all the Kei-class restrictions: the tiny exterior dimensions, a 660cc engine making a maximum of 64 hp, that sort of thing. But unlike most Kei cars that have space-maximizing bodies designed for practicality, the Autozam AZ-1 is all about fun. Here, we have a video where I get to drive around an AZ-1:
See what I mean? They’re a great time.
One of the many fun things about an AZ-1 is how all of the body panels are relatively easy to remove; this means that, if, say, a company wanted to make a body kit for the AZ-1 that made it look like a Ferrari F40, one could absolutely do that. And, for reference, this is what a Ferrari F40 looks like:

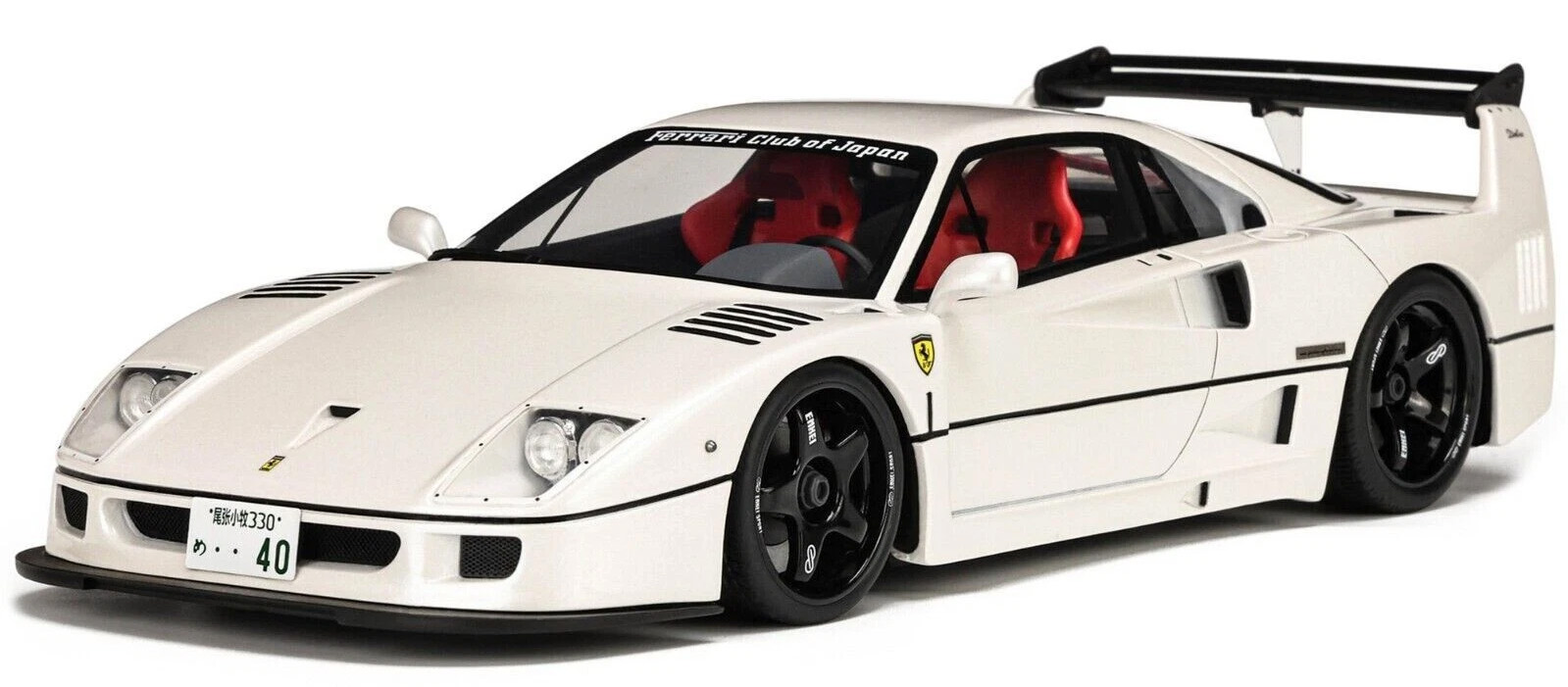

Now, when you translate the design vocabulary of the Ferrari F40 to the proportions of an Autozam AZ-1, you end up with something that looks a lot like one of those fun Leen Customs pins caricature of the car:
(By the way, you can get exclusive Autopian Leen car-pins when you become a member, just saying.)

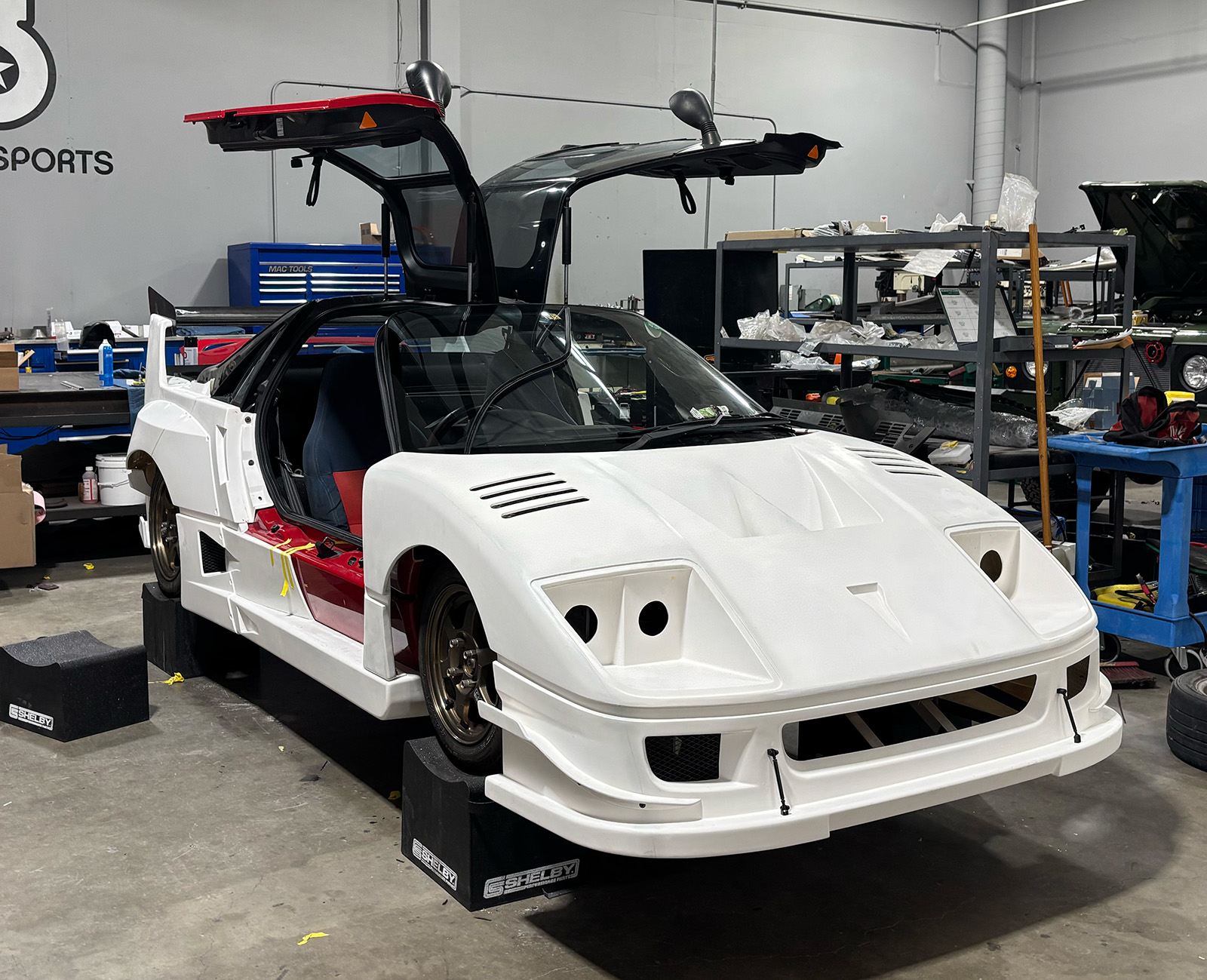

Now, like I said, over at GAS they’re putting one of these body kits on an Autozam AZ-1. And, in looking at it carefully, you can see one issue that has to be addressed, one I’m not sure I’ve ever actually seen on a car. Let’s see if you can spot it:

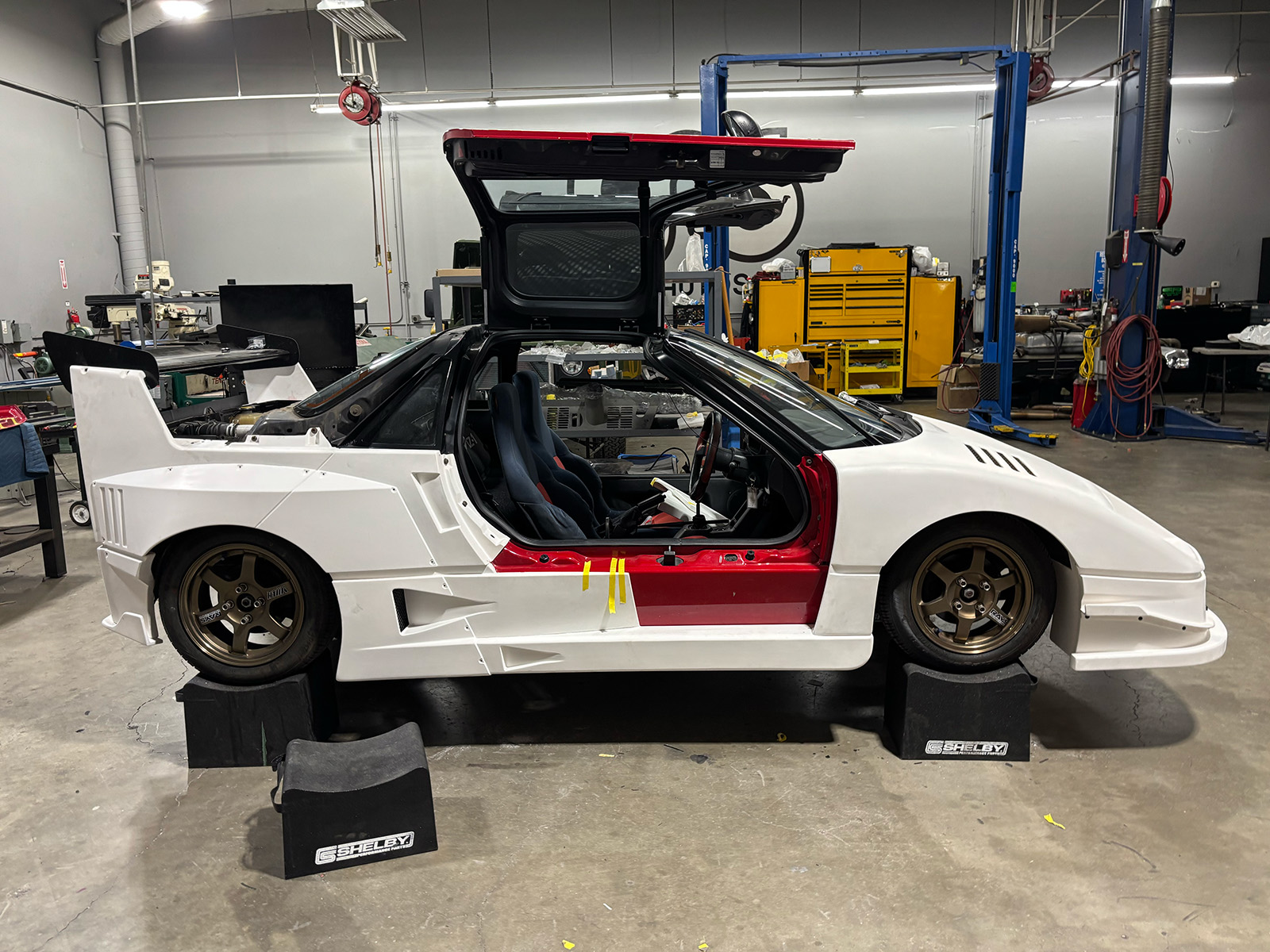

Can you tell from that angle? It may be easier to see it from the side:

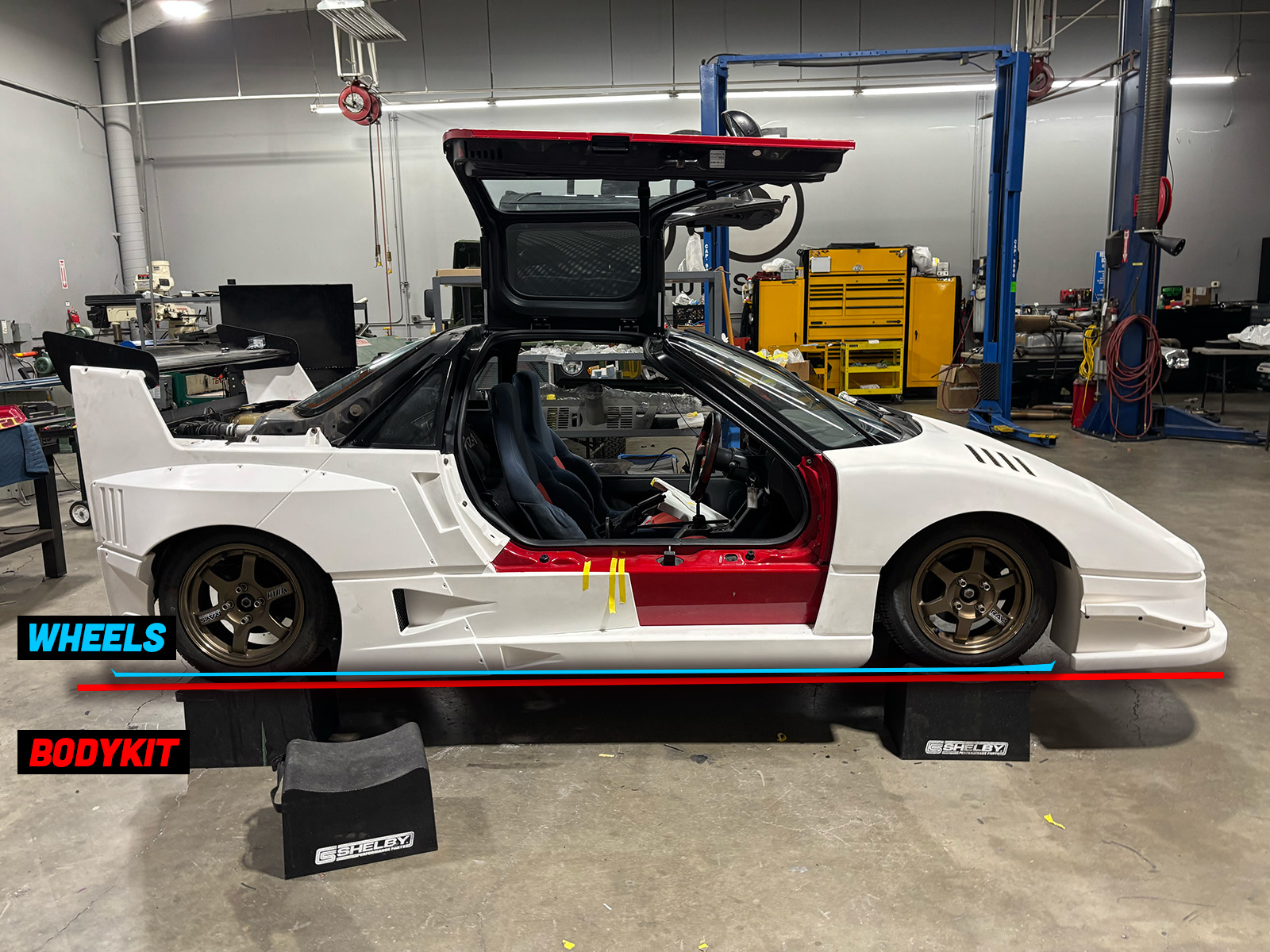

If you want the reveal, just click that image up there. See what’s happening?
Somehow, this car now has negative ground clearance. As in the body extends lower than the wheels, so were it not resting on those blocks, the body would be in contact with the ground and the wheels would be suspended, like a toddler’s dangling legs on a chair. That makes for a less-than-optimal driving experience.

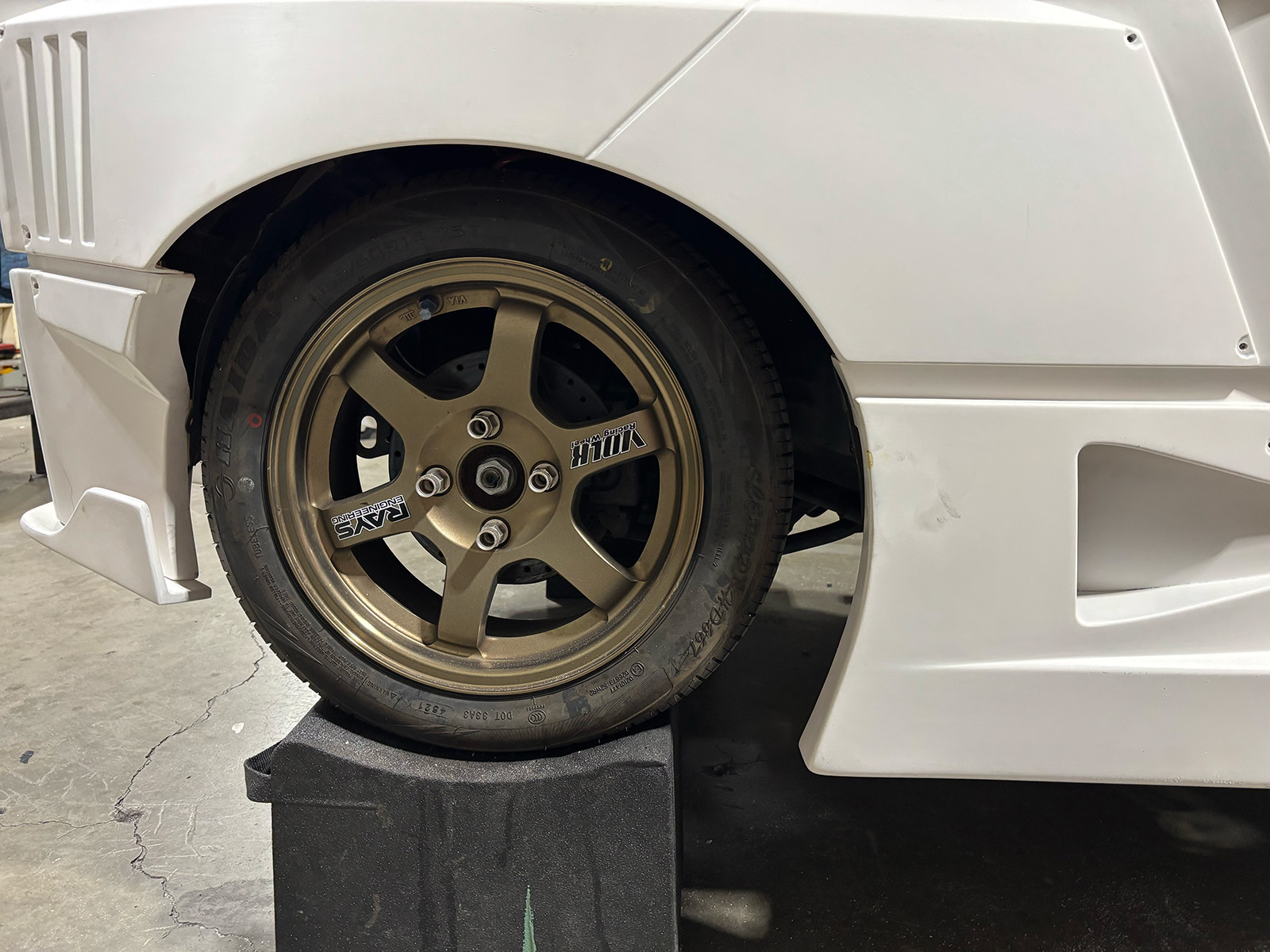

Here, you can see it more dramatically in a close-up:
One of the technicians at GAS confirmed this wasn’t just a wheel size issue, but that they would need to install some sort of lift kit on the suspension to get this to work. They’re confident they can do it, of course, but it is a sort of hilarious problem to encounter, and not one I think I’ve seen before. I’ve definitely seen lowered cars with ground-scraping body kits, but never ones where the wheels are left essentially dangling.
They’ll get it sorted, and this will be an incredibly absurd and fun little car. Until then, just enjoy the madness of the process.
