How BMW’s Iconic ‘Angel Eyes’ Changed The Way We Look At Cars, Years Before LED Headlights

Bmw Angel Eyes Topshot
ADVERTISEMENT

Before Audi awed the world with its LED daytime running lights, BMW did a similar trick with circular daytime running lights that everyone wanted on their rides, commonly known as angel eyes. But how did they light up, and did you know that they aren’t actually called angel eyes, or even halos? Let’s partially-disassemble an E90 3-Series headlight to see how BMW’s groundbreaking daytime running lights worked.

BMW’s official terminology for its daytime running lights is corona rings, which, up until 2020, was an entirely appropriate name that had no unintended negative connotations whatsoever. See, corona is Latin for wreath, and these distinctive lighting elements usually take the form of rings. I say “usually” because BMW’s designers have been on one recently, but that’s to be expected.

Vidframe Min Top
Vidframe Min Bottom

Celis Tube Hidden Bit

BMW didn’t develop this tech, instead they were the first to use Hella’s CELIS lighting technology, short for Central Lighting Systems. Originally demonstrated in 1996, CELIS started life as an interior lighting solution that used indirect lighting via refraction. A bulb simply shining on whatever you’re trying to look at is direct lighting, but Hella shined light down using translucent elements, which made the elements glow. It sounds futuristic, but it’s actually old: Guiding light via refraction was first demonstrated nearly 200 years ago by French physicist Jacques Babinet and Swiss physicist Jean-Daniel Colladon.

Celis Tube Ends Bmw Angel Eyes

ADVERTISEMENT

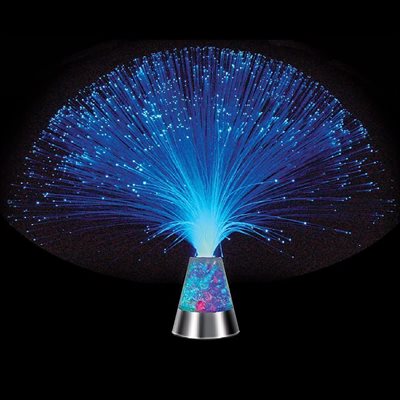

For a real-world example, picture those fiber optic lamps that used to be found in novelty shops. Light shines up through the fibers, causing the fibers to glow before shooting out the fiber ends. While not objectively the brightest way of lighting the way, this glow certainly is uniform, something early diffused LED automotive lighting arrangements struggled with.

A key advantage of CELIS that’s sure to appease people who say “they don’t make ‘em like they used to” is serviceability. Most modern headlights with LED daytime running lights aren’t designed so that you can easily replace an element if it burns out. You have to break into the headlight housing, whip out your soldering equipment, and go to work like you would on an old electronic device.

Bmw Angel Eyes Bulb

BMW’s use of CELIS employs filament or halogen bulbs with their own little reflectors, meaning that if a corona ring were to go out, it’s a relative doddle to change. Either swap them out for stock replacements or do what the previous owner of my 3-Series did and throw in some LEDs. I’ve played around with both and can definitely say I’m a fan of the warm tinge the stock bulbs have.

Ccfl Angel Eyes

ADVERTISEMENT

Soon after corona rings came to the facelifted E39 5-Series, the aftermarket went nuts for them. While CELIS was Hella’s technology, a universal aftermarket solution for those looking for the angel eye look soon came in the form of CCFL rings, short for Cold Cathode Fluorescent Lighting. Instead of traditional filament bulbs, these lighting elements use excited electrons, mercury vapor, and a phosphor coating to provide a uniform glow without melting plastic headlight housings. While great-looking, CCFLs have largely fallen out of fashion due to advancements in LED technology.

Pretty much every new styled daytime running light you see today whether OEM or aftermarket uses diffused light emitting diodes that are efficient, long-lasting, and a much cooler light than you’ll get out of a halogen bulb. As a bonus, they’re now relatively cheap to manufacture and way brighter than CELIS. The brightness cuts two ways though, as many drivers of newer cars simply motor on at night with nothing more than their daytime running lights illuminated.

Halo Variations

While the aftermarket latched onto angel eyes like a snapping turtle, it’s also worth noting that a huge array of manufacturers have used a variation of BMW’s circular design, from Mazda to Chevrolet. With the performance of projector headlight elements established, it’s likely a look that’s here to stay.

Hopefully you found this look into BMW’s pre-LED corona rings illuminating. We’ve certainly come a long way since sealed beams, and it’s likely the next few decades will spawn new innovations in lighting. Can America hurry up and approve proper, full intensity matrix headlights already?

ADVERTISEMENT

(Photo credits: Thomas Hundal, Amazon, Chevrolet, Mazda)
