Jeep Redesigned An Iconic Taillight Upside-Down And I’m Totally Confused

Jeeptaillight Top
ADVERTISEMENT

We haven’t done a good taillight post in a while here, so I think its high time we solve that. What I’m afraid may not get solved is this mystery I want to tell you about, a mystery about Jeep taillights. It’s not that the taillights themselves are that mysterious, but a decision made in the design of Jeep Wrangler taillights since the JK-era, starting in 2007. It’s a decision I don’t understand, but I wish I did.

This is going to require a bit of backstory about Jeep CJ/Wrangler taillights, which is fascinating because of one fundamental truth about how Jeep designers seemed to think about taillights:

Vidframe Min Top
Vidframe Min Bottom

They did not give a shit.

At least, that’s how it always seemed; for most of the Jeep CJ’s existence, the taillights used seemed to be the cheapest, most easily-available out-of-a-catalog units Willys, then AMC, then Chrysler, could buy. For example, here’s what the taillights looked like for a 1973 Jeep:

73 Cj Rear

ADVERTISEMENT

They’ve just stuck on the most basic – and let’s be honest, probably cheapest – taillights they could. A pair of round red ones for brake/tail/turn, and a pair of little round reverse lamps above. Good enough!

Then, in 1976, AMC realized they could probably save even more money and time by just using those all-in-one “box” taillights that were showing up on some Ford stepside trucks and 18-wheelers and box trucks and other vehicles. These eliminated the need for four separate light units, cutting it down to just two:

76cj7 Rear

As an aside, that picture above is interesting because I think it’s based on a pre-production design, where the off-the shelf box taillights might have been encased in some body-colored shell? At least that’s what it looks like, and is not what eventually made it to production, perhaps because that shell would have covered the legally-required retroreflector on the taillight unit.

These box taillights are some of my favorite bits of taillight design, due to their incredible cleverness and simplicity.

ADVERTISEMENT

76cj5 Siderear

I once made a whole video about them, and in this video I actually mention what this article is about:

The box taillight — which use the left lamp to illuminate the license plate below — stayed with the Jeep CJ into its re-branding as the Wrangler with the introduction of the YJ in 1986, as you can see on our own David’s YJ in this festive picture here:

Screen Shot 2024 12 24 At 9.59.15 Am
Photo credit: Amy and Stuart

When Jeep did a major update of the Wrangler, going from the TJ series that ended in 2006 to the new JK series, one of the things that Jeep’s designers did was to update the lighting, including the taillights.

ADVERTISEMENT

Jk Rearish

Jeep assumed that in the advanced Year of Our Lard 2007 no consumer looking to drop about $20 grand on a new car would be satisfied with the same kind of taillight they could pick up for $15 at their local Pep Boys. When you think about it in terms of repairability, though, the Pep Boys light is really a plus. But still, you know how people are.

So Jeep re-designed the taillights to be custom units, but designers used the old, parts-catalog box taillight as an inspiration for the design. There was just one significant change:

Jeeptail Comparo

They re-designed it upside-down.

ADVERTISEMENT

Now, I get that this is a minor thing. Hell, it’s all minor! It’s focusing on minutia to such a degree that I question my own sanity, my own role in the world, my very existence. But I can’t get it out of my head. Because, fundamentally, it makes no sense, and if I had my way, the world – at least the world of taillights – would make some kind of sense.

It’s very clear that the JK taillights are not some clean-sheet complete re-thinking of what this taillight could be. It’s absolutely derived from the old box lights, right down to the way it’s not really integrated into the body of the Wrangler. They’re still sort of stuck on, because that look has become a signature of what it means to be a Jeep.

In all of the time Jeep has used these taillights on CJs and then Wranglers, they have had the reverse lamp oriented at the top. This is because they had to, because the window for the license plate lamp is at the bottom, under the red taillight section, since that’s what stays on when the lights are on. You can’t have the license plate only be illuminated when the car goes into reverse, after all; it’s already weird enough that the license plate illumination increases when the brakes are applied.

So, it’s not like there’s any precedent here for a lower reverse lamp, because there isn’t. Hell, when Jeep designers could be bothered enough to actually design a taillight from scratch, they were more than willing to stick the reverse lamp up top, like a weird clear gelatinous cherry, as you can see on this ’60s-era Jeep Jeepster Commando:

Jeepster

ADVERTISEMENT

I just want to know why. Why did they feel they needed to flip the look of this pretty iconic taillight 180°? What did they feel was being gained? Was there some conceptual reason? Did designers at Jeep secretly wish they could flip those lights around for decades?

I don’t get it. I have reached out to a Jeep designer, but so far I’ve yet to get a response. I’ll keep trying, and if I get any answers, I’ll do a follow-up. As it is, I just want to make you aware of the fundamental situation and perhaps we can all ponder this mystery together.

Why, Jeep? Why? What am I missing? I feel like there’s something here eluding me, and it’s driving me clamshit.



Relatedbar

ADVERTISEMENT

Let’s Look At The Taillights Used By One Of The Worst Cars Of All Time

Finally, Here’s Your 2024 Monterey Car Week Interesting Taillight Roundup

Here’s Why America’s ‘Baroque’ Period Was The Strangest Taillight Era

Taillight Researchers Believe There May Be A Golden Ratio For Taillights

Share on facebook
Facebook
Share on whatsapp
WhatsApp
Share on twitter
Twitter
Share on linkedin
LinkedIn
Share on reddit
Reddit
Subscribe
Notify of
60 Comments
Inline Feedbacks
View all comments
Lava5.0
Lava5.0
4 days ago

The most logical answer that I could come up with is that they were not getting enough ground illumination from the top of the light so this was an easier way to lower the light without changing the positioning. That being said, I don’t believe my own bullshit as in the realm of lighting illumination, 2″ positional changes are not going to affect much.

Goblin
Goblin
5 days ago

It’s never minor.

In 2016 we replaced our 2013 Santa Fe (long wheelbase, three row seating) with a MY 2017 one. Very, very similar, pretty much a restyling on the front, and identical back.

But something was amiss. And I couldn’t put my finger on it.
Then it hit me.

The 2013 one had the reverse lights on the top. They were aligned with a long silver strip that linked them visually.
The 2017 one has the revers lights on the bottom. They are misaligned with the silver strip, and it looks out of whack.

Everything else remains the same, the taillights are interchangeable.
I’m not mentioning here the full LED taililights of the tech packaged MY 2016 ones, which are the best looking, and quite rare.

Links to pics (not my cars):

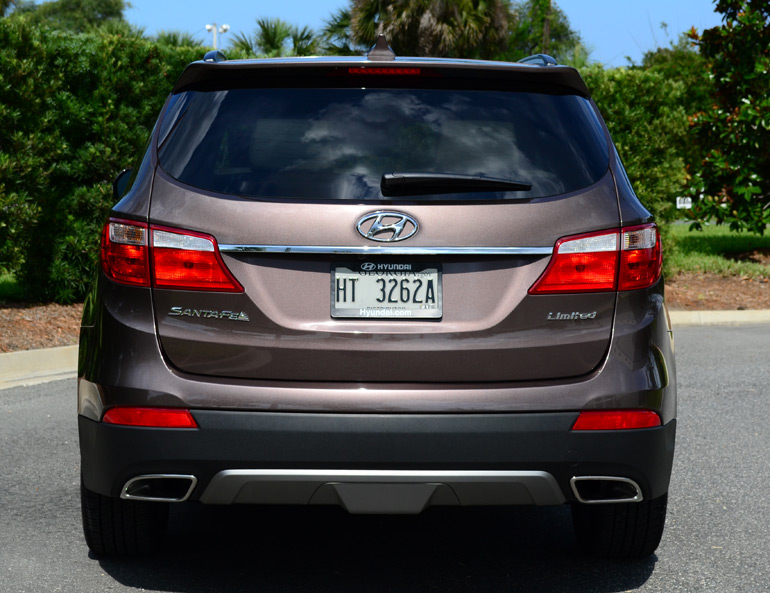

2013-2016:
